RK3588s Una Board Computer

Et High Quality TP-IV RK3588s Una Board Computer Developed per ThinkCore Technology Co., Ltd. est princeps - efficientiam Industrial SBC ad petens IOT et Edge Computing Applications. Est idealis alternative ad RUBUS IDAEUS PI V.
Non providet:
● QUad-core cortex-A76 + quad-core cortex-A55
● 6tops NPU Computing Power
● 8k video encoding et decoding
● rich interfaces (HDMI 2.1 / MIPI CSI / MIPI DS / LVDS / USB3.0 / Mini PCIE etc)

Mitte Inquisitionem

depictio producti

RK3588s SBC (TP-IV BTB) Introduction

As the professional manufacturer, Thinkcore Technology would like to provide you high quality RK3588S single board computer, which is applicable to edge computing, artificial intelligence, cloud computing, virtual/augmented reality, smart security, smart medical care, self-service terminals, smart retail and other scenarios

Comparari ad RUBUS IDAEUS Pi V, nostra tabula habet maior computing potestate et magis interfaces, faciens illud magis idoneam ad developing industriae-gradu products.

Quid RK3588s SBC (TP-IV BTB)?

I. De TP, 4.BTB (Board -To Board) est summus perficientur unum-tabula computatrum et embedded motherboard idoneam pro ore AI, IOT MODUS, et Alia Digital, Robotics, Imperium, et Alia Digital, File, et Edge Computing.

II. RK3588s Una Board Computer utitur Rockchip RK358S2 sicut eius Core Chip, utilitas an provectus 8NM processus technology cum maximum horologium celeritate 2.4GHz. It integrates an octa-core processor (quad-core 64-bit Cortex-A76 and quad-core 64-bit Cortex-A55) and an ARM Mali-G610 MC4 GPU, supporting 8K video encoding and decoding and 8K display output, superior image processing capabilities, and support for multiple camera inputs and multi-screen displays. Et aedificavit, in independens NPU gloriatur a computing potestate usque ad 6Tops, ferant amplis ai missionibus.

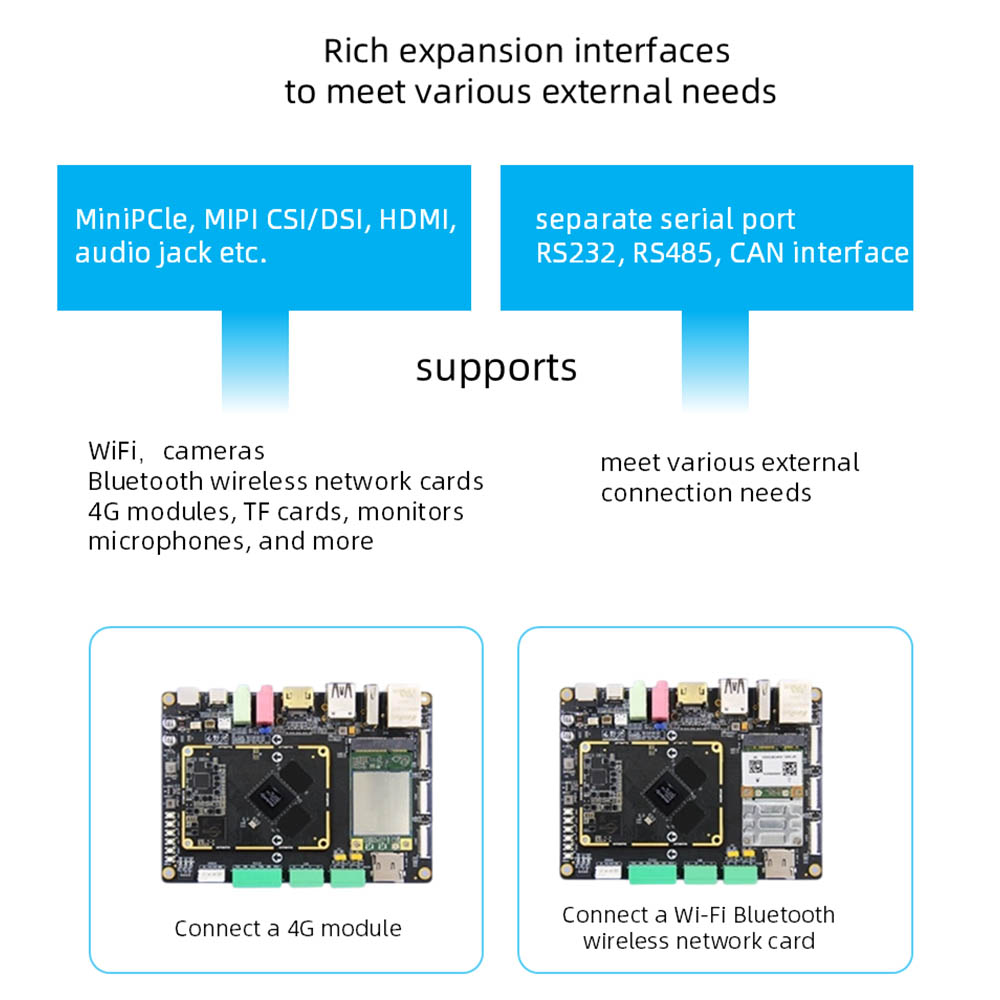

III. A varietate memoriae et repono combinationes sunt available et onboard hardware configuratione est libratum ad amplis applications. IV. Aliqulo integrated, gloriatur dives ordinata expansion interfaces, inter Gigabit ethernet, USB, MIPI, HDMI, V mipi DSI et mipi CSI, potest, Rs485 et Rs232. Hi interfaces plene utilitas in processus scriptor perficientur, longius expanding tabula in application missionibus.

VI. Publice sustinet amet Android, Debian et Ubuntu operating ratio imagines, faciens idoneam ad varietate application environments.

VII. Omnino aperta fonte, quod offert publica tutorials, a completum SDK coegi Development Package, Design Schematics, et Alius Resources, faciens facile ut incipiat.

RK3588s SBC Features

● 6tops NPU

● 8k codec

● quad-screen ostentationem

● Dives interfaces

● fortis industriae-gradus applicability. Idoneam ad ora computing, artificialis intelligentia, dolor curis, auto-ministerium terminals, dolor retail, et aliis missionibus.

● Free RK3588s Android SDK

● Custom RK3588s solution available

Hardware parametri

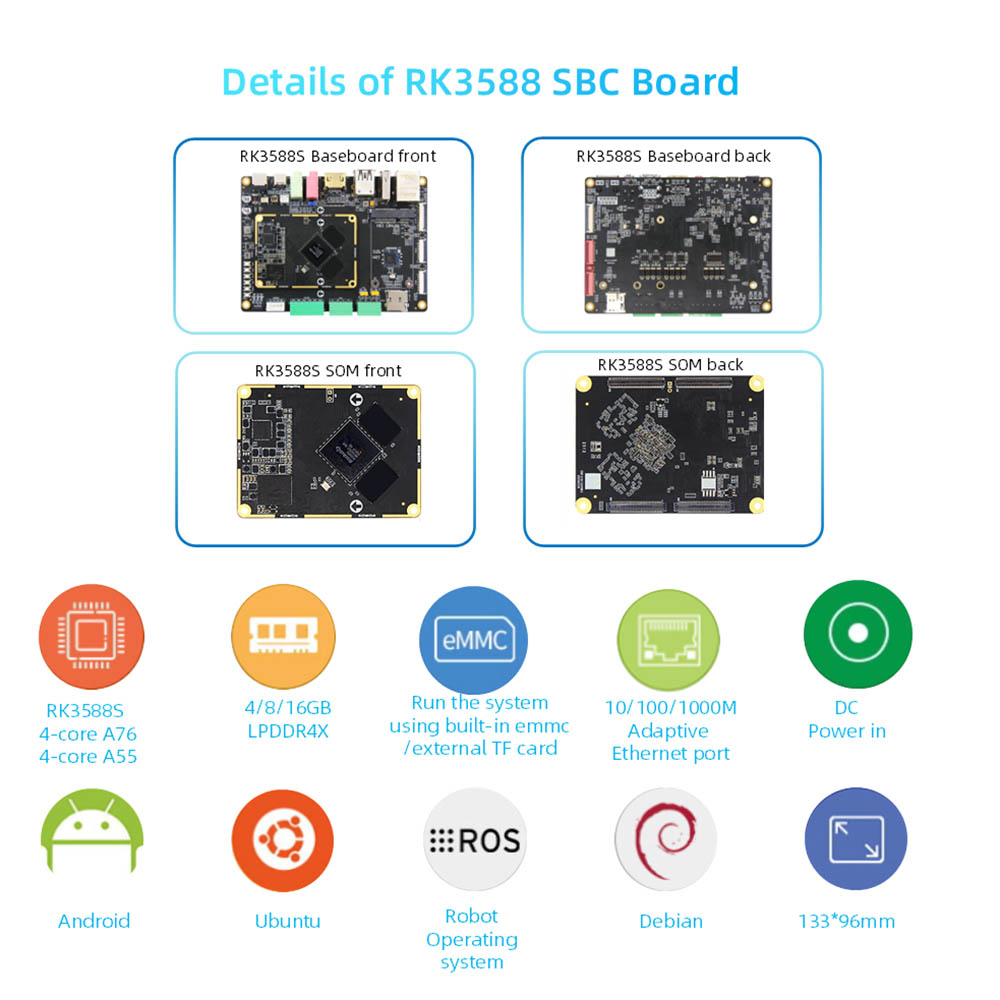

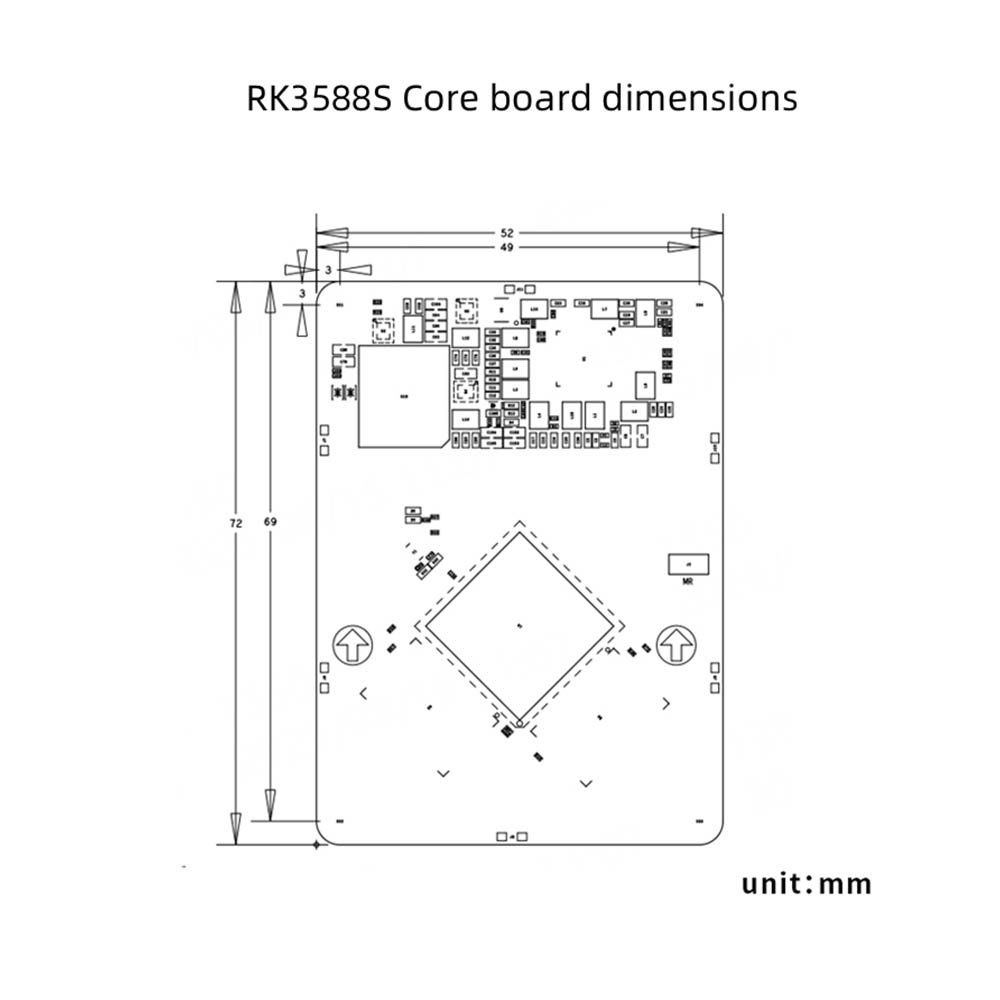

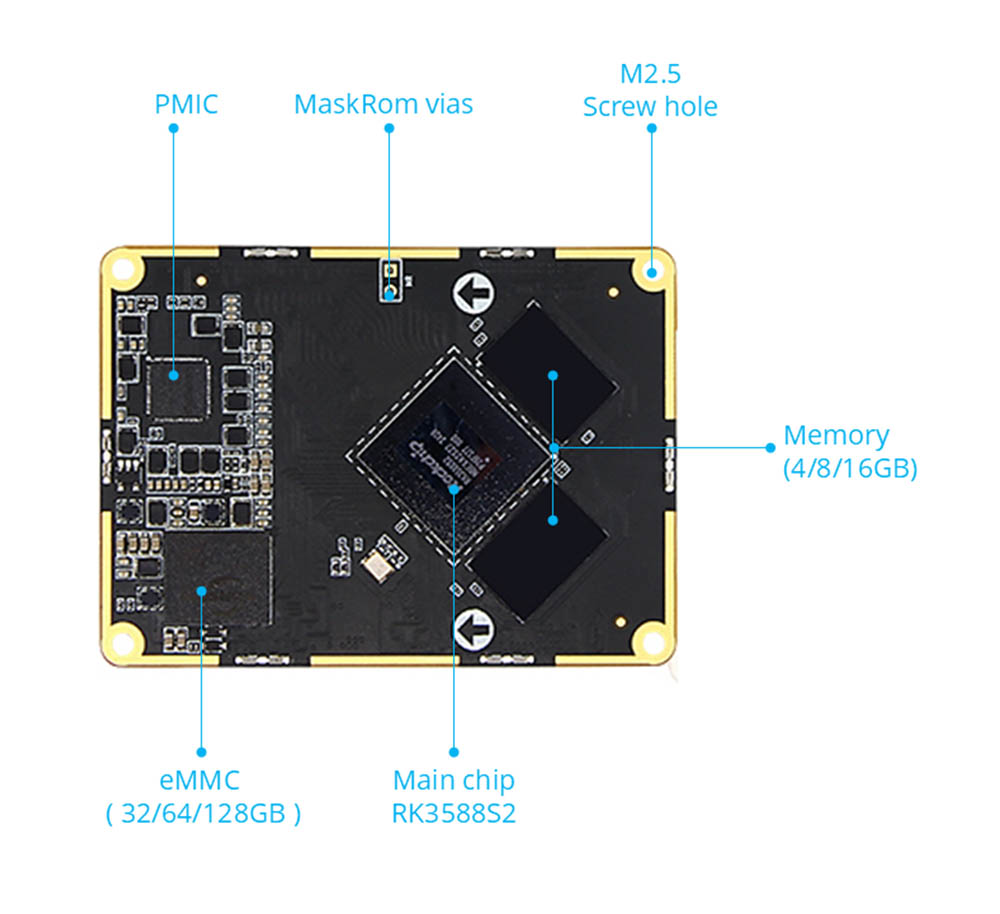

1.RK3588s SBC (TP-IV BTB) Core Board Mare

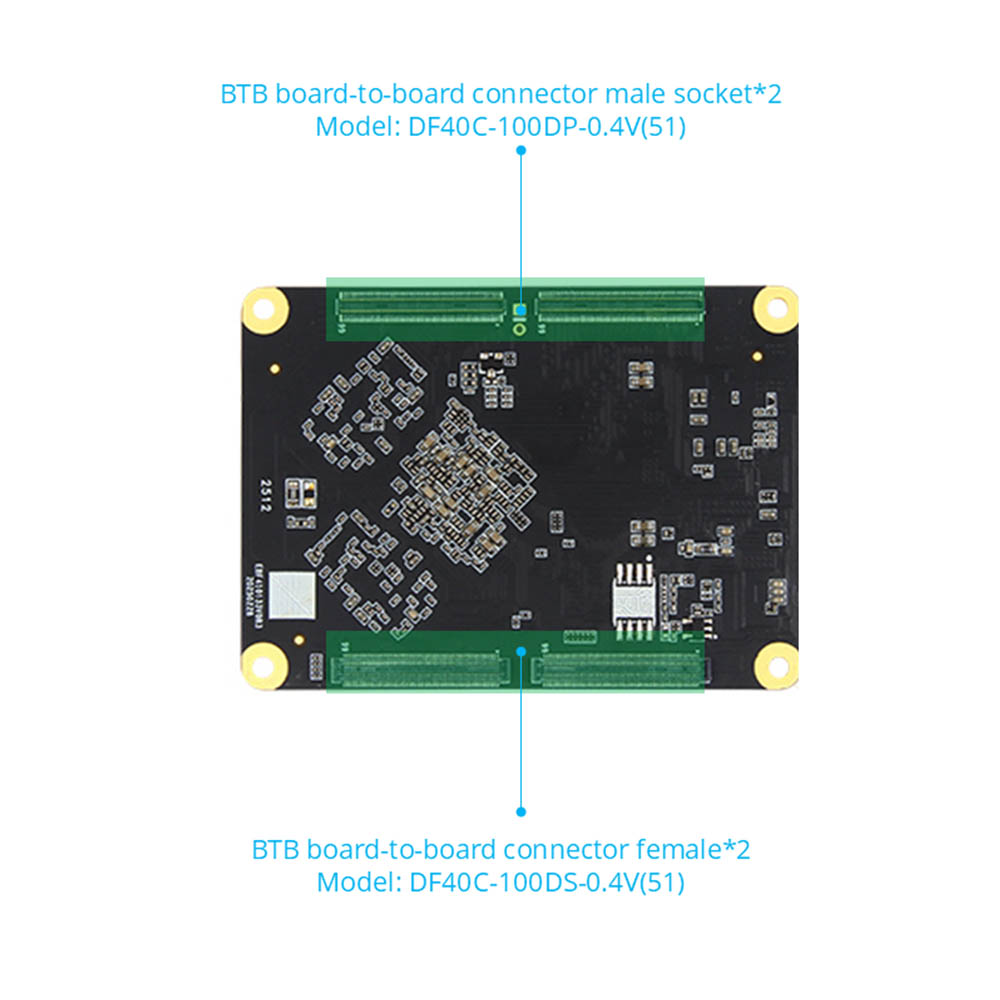

Iungo: Male: DF40c-100dp-0.4V (LI) Male: DF40c-100ds, 0.4V (LI)

Pelagus Chip: RK3588S2 (quad-core A76 + quad-core A55, Mali, G610, 6tops Computing Power)

Io: BTB ducit ad CD pins 0.5mm picem omnes i0 leads

Memoria: IV / VIII / 16GB, LPDDR4 / 4x

Storage: XXXII / LXIV / 128GB, Emmc

RK3588S Single Board Computer

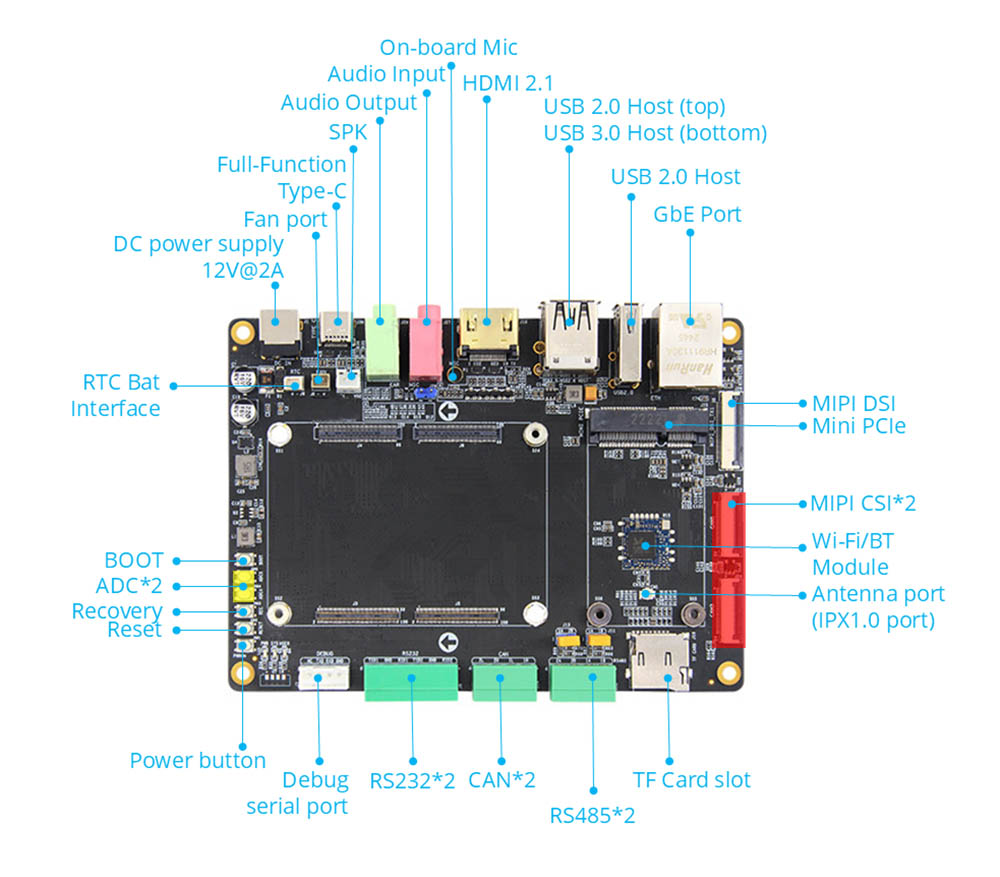

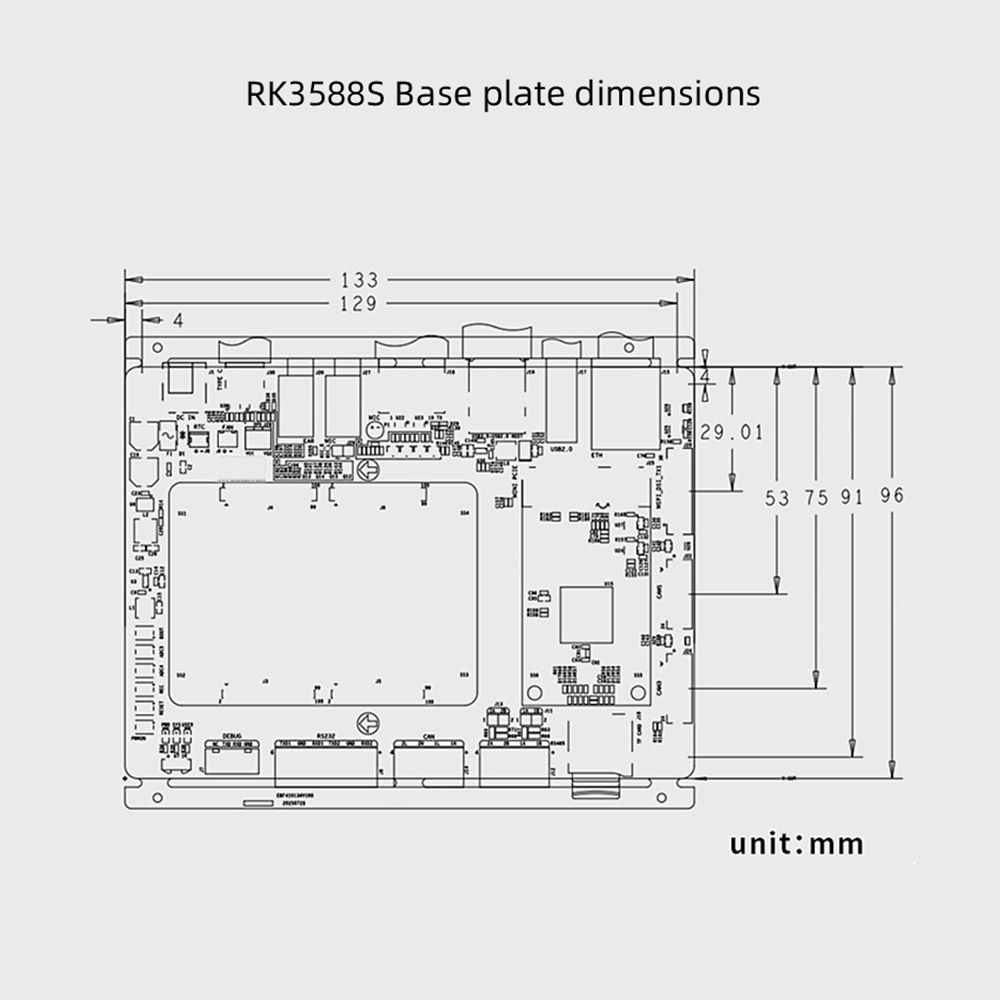

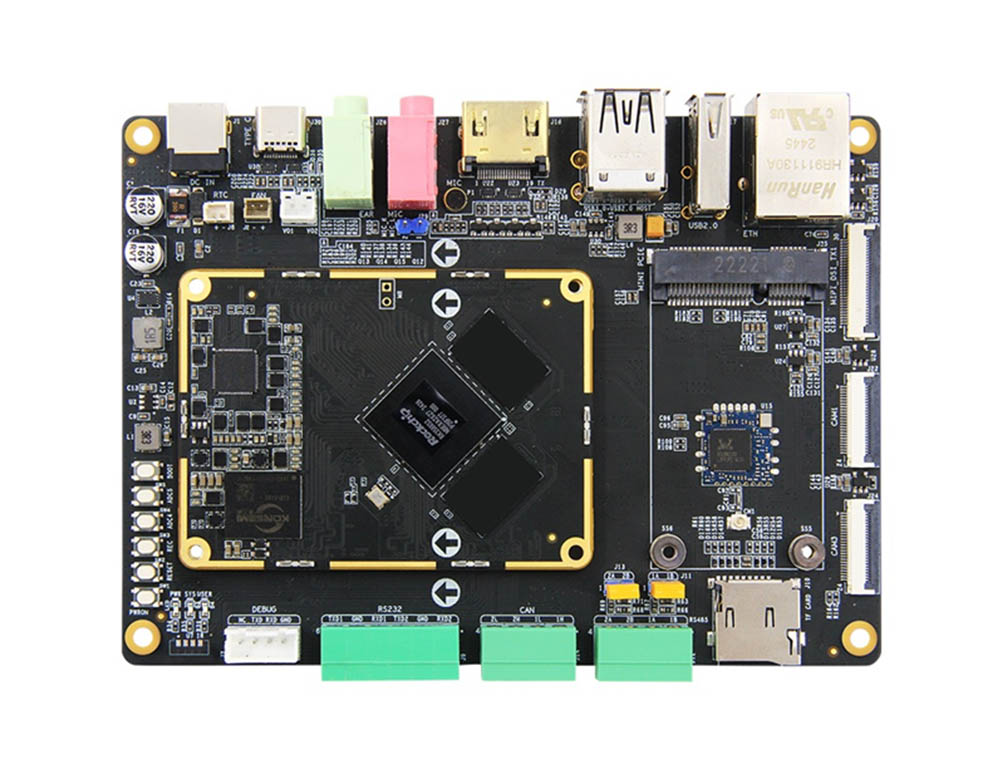

2.RK3588s SBC (TP-IV BTB) Baseboard parametri

● Iungo: Male: DF40c-100dP, 0.4v (LI) Male: DF40c-100ds-0.4V (LI)

● Power interface: 12V @ 2a DC initus, DC interface * I;

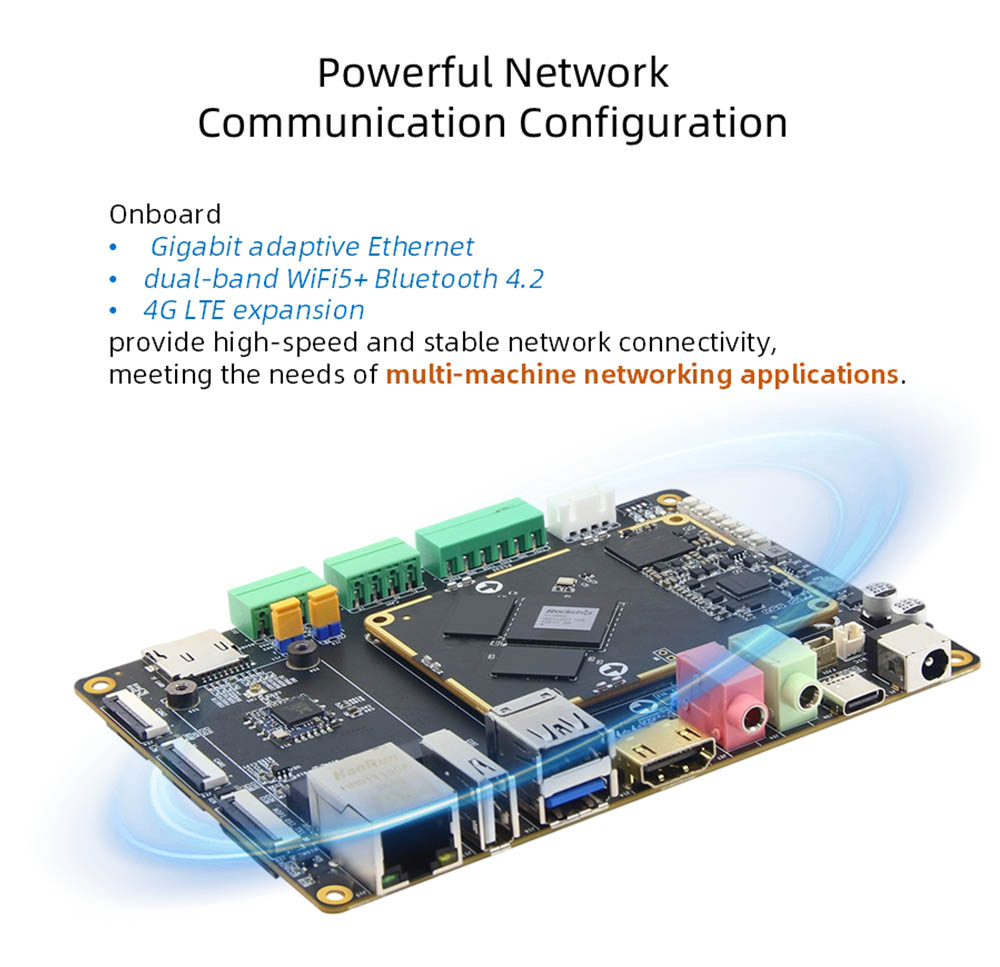

● Ethernet: Gigabit Network Portus * I, sustinet X / C / 1000mbps Data Transmissus Rate

● WiFi + Bluetooth: onboard Support 2.4G / 5.8G Dual-I. WiFi5 + Bt4.2, Model: Tl8821cub

● HDMI: HDMI2.1 Output * I, supports plures screens cum aliis screens, maximum resolution 7680x4320 @ 60hz

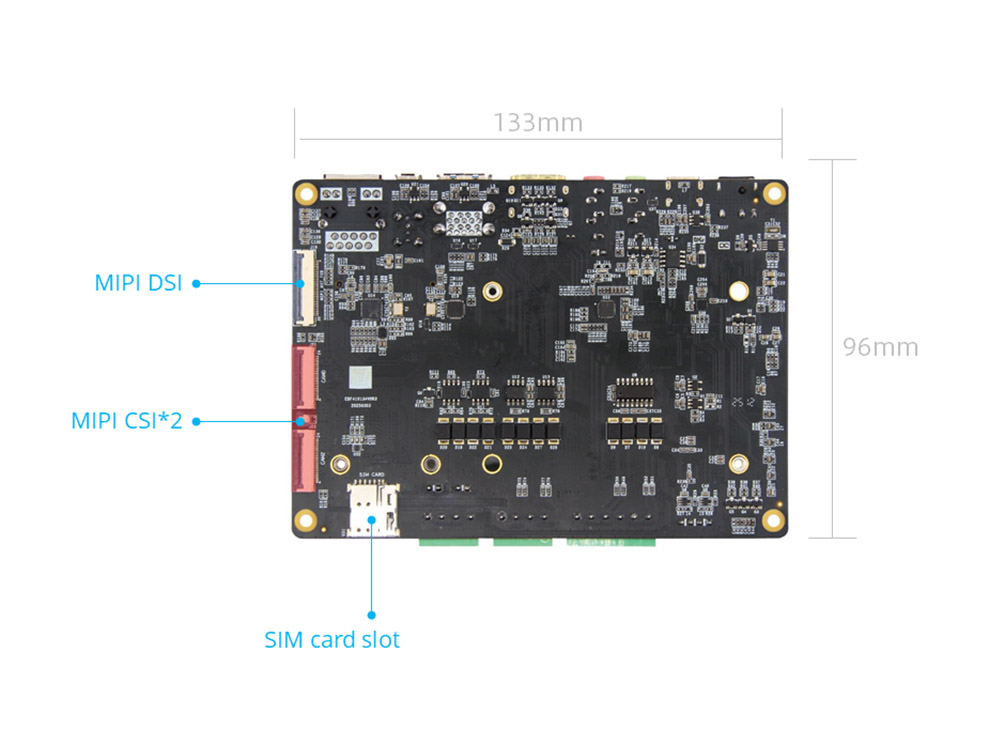

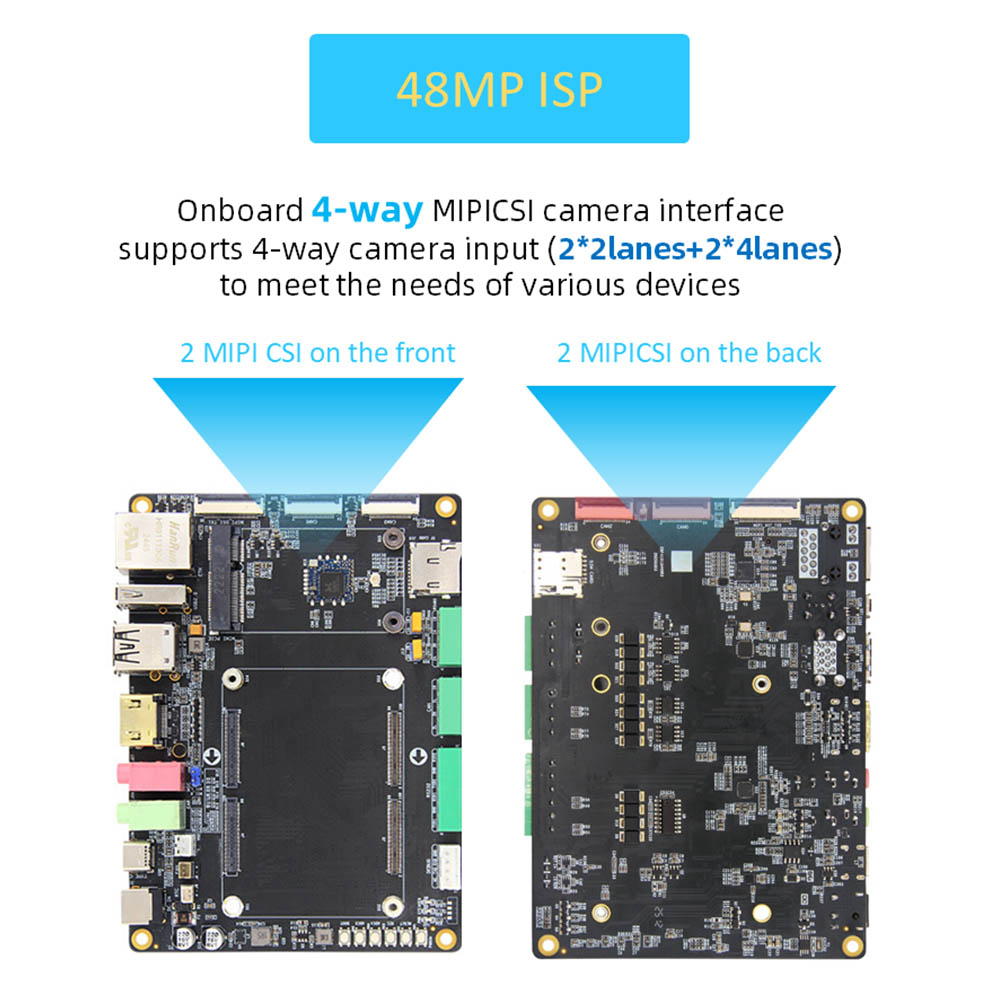

● mipi-dsi: mipi screen interface * II (fronte * I, retro * I), potest esse plugged in mipi screen, sustinet plures screens cum aliis screens; 0 3840x2160 @ 60Hz Mode sustinet unum, quia magis modis modis, placere ad specificationem ● mipi-CSI: 24pin quattuor FPC camera portus (fronte et retro), compatible cum mipi cameras.

● USB 2.0: Duo USB, exercitum genus-a portubus

● USB 3.0: Unum USB-exercitum genus-a portum; Unum USB, OTG Type-C Portus, nam firmware coruscans, sustinet DP1.4.

● Ple Portus: Unum Mini-Ple Portus, compatible cum plenus-altitudo vel dimidium-altitudo wi-fi pecto, 4g modules, 5g modules, vel mini-PCLUS modules.

● TF Card Slote: Unum Micro SD (TF) Card Slote, sustinet taberna systema ex TF card, usque 512GB.

● Sim card socors: unum Sim card socors; Sim card functionality postulat a 4g aut 5G moduli.

● potest: duo can portubus.

● Book Portuum: Unum Debug Portus (UART2), default parametri 1500000-8-N-I; Duo Rs232 portus (UART0 & UART9); Duo Rs485 Ports (Uart4 & Uart7).

● Audio: Google output: I 3.5mm Audio Jack (Green); Audio input: I 3.5mm Audio Jack (Rubrum); Spaker spaker Jack (sustinet 3W loquentium); Onboard microform (I)

● Puga pyga: I potentia button; I reset puga pyga: I Recuperatio puga pyga: II ADC bullarum; I tabernus button

● Leds: I potentia indicator; I systema indicator; I User indicator

● RTC: I RTC Power Jack

● Fan Portus: sustinet 5v fan enim refrigerationem
