China Rockchip RK3588 Development Board Manufacturers & Suppliers

depictio producti

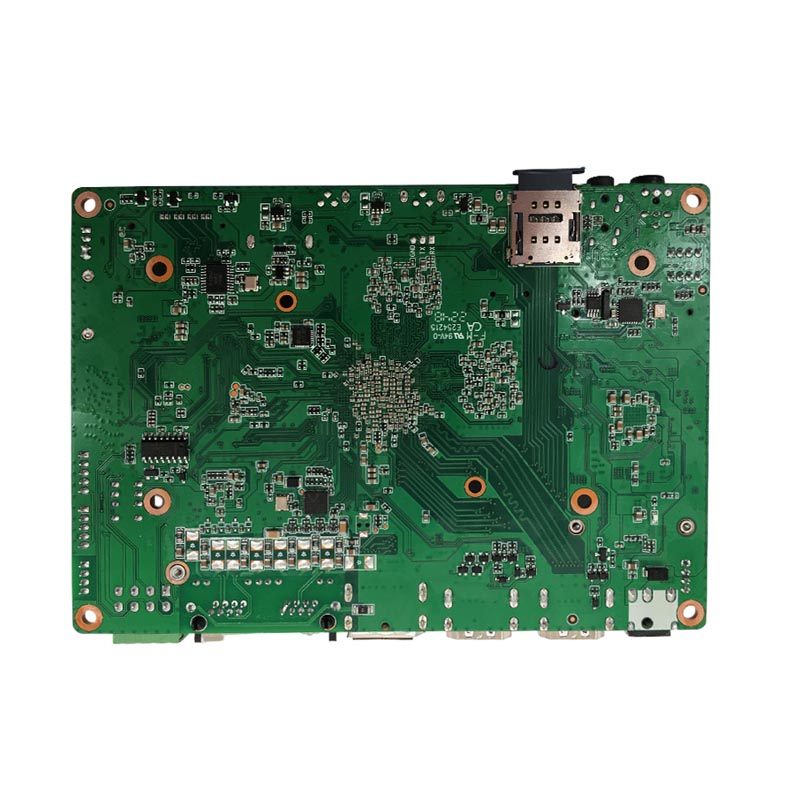

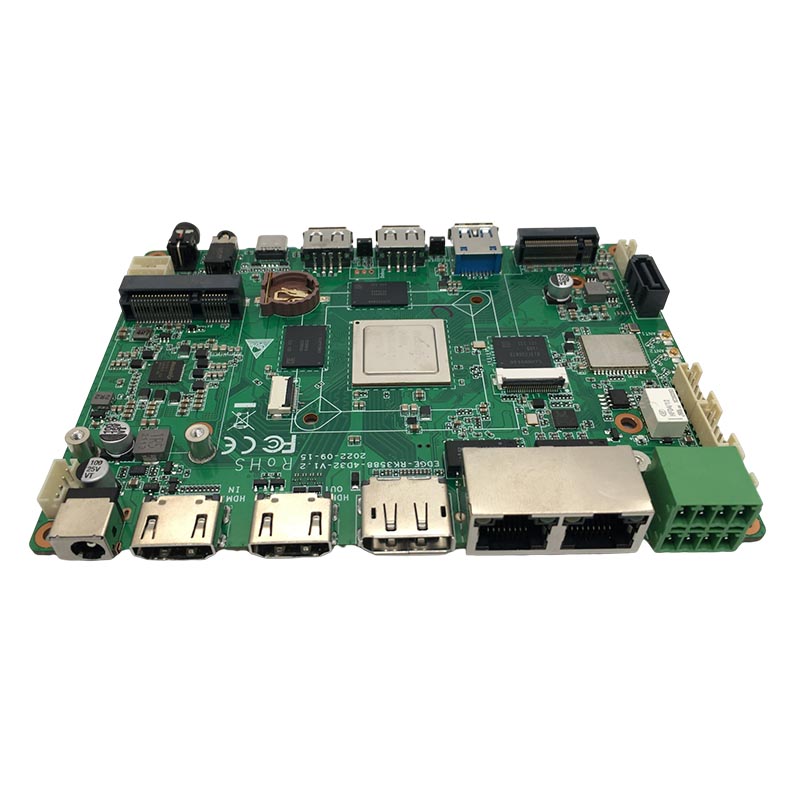

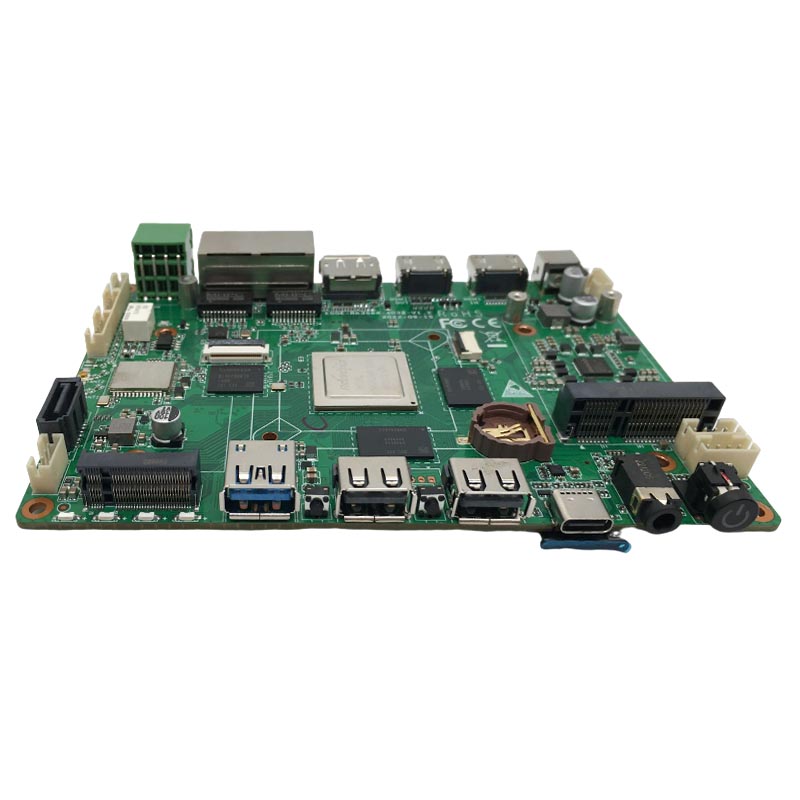

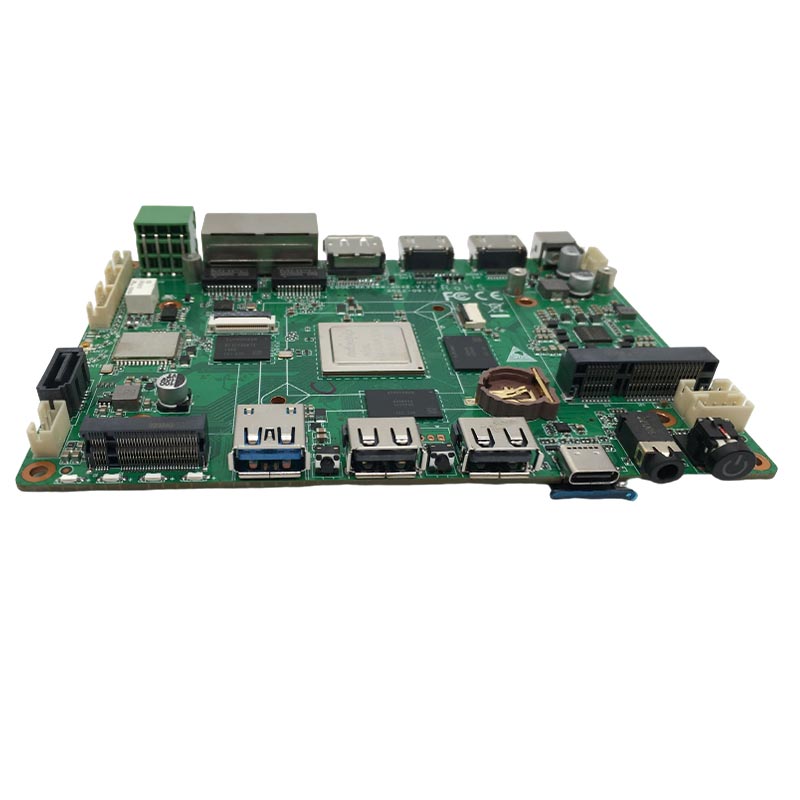

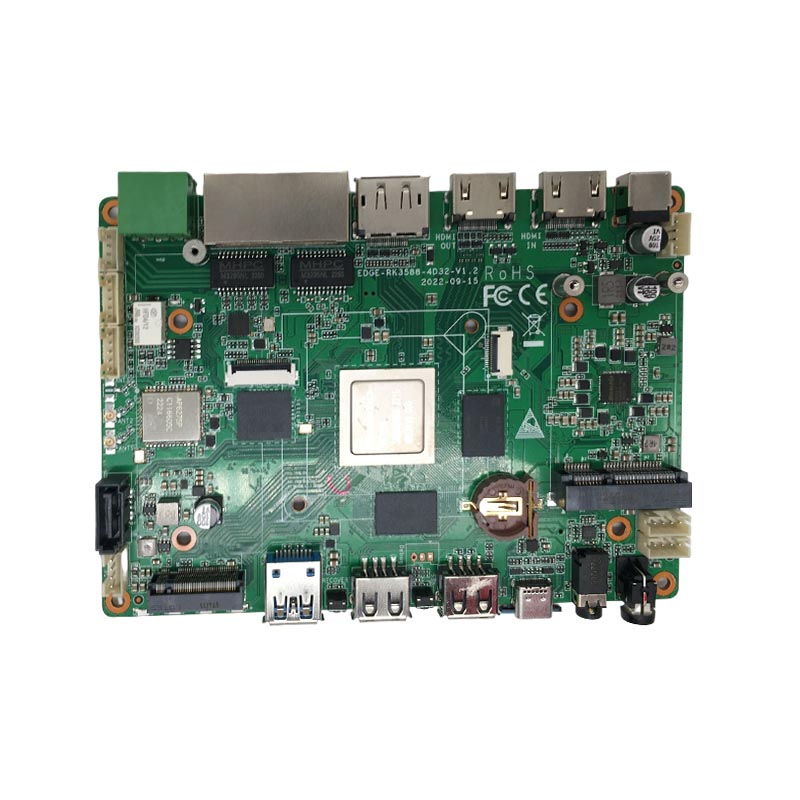

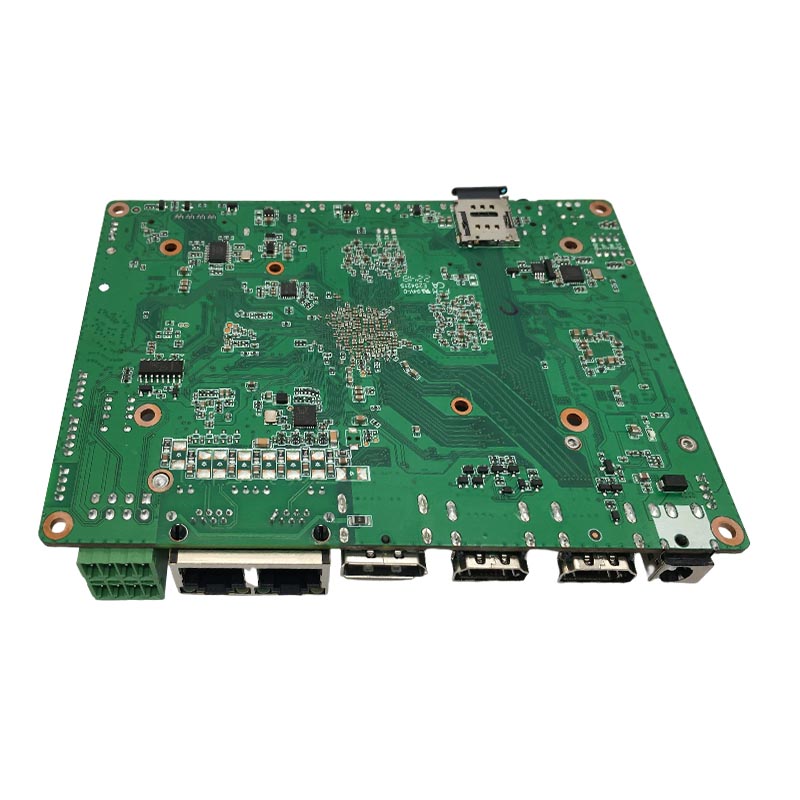

Rockchip RK3588 Development Board

RK3588 nova generatio est chip navis navis Rockchip, qua utitur 8-core CPU (4-core Cortex-A76 + 4-core Cortex-A55) cum processu 8nm productionis. Sustinere 8K 60HZ video output et decoding, integratio interna 6.0 Tops NPU, occurrere potest extremis necessitatibus computandis machinis maxime terminalibus.

RK3588 pinguem interfaciem habet, scire potest 8K+4K+2K 3 velum ostentationis, vel 4K+4K+4K+2K 4 velum ostentationis, Type-c, SATA3.0, PCIE3.0 interfaciem habet, et duplicatum gigabit retis portum cum 4* 16bit alveum DDR, eiusque subsidii capacitas max DDR usque ad 32GB.

cpu	RK3588 Octo-core, Cortex-A76 et Cortex-A55
cpu	Frequentia usque ad 2.4GHz
GPU	Mali-G610 GPUï¼OpenGL ES 1.1/2.0/3.2ï¼OpenCL 2.2ï¼Vulkan 1.2
GPU	2D accelerationis hardware embedded princeps perficientur
DDR	LPDDR4X
DDR	4G/8G/16G ad libitum
NPU	6.0 Tops
OS	Android 12/Ubuntu/Linux
RAM/ROM	Support eMMC5.1ï¼SDIO3.0
RAM/ROM	16GB/32GB/64G/128Gï¼optionalï¼
Exhibe output	HDMI 2.1 interface* 1ï¼suscipe ad 8K 60Hzï¼HDCP2.3
Exhibe output	DP interface* 1ï¼4Laneï¼support ad 8k 30Hzï¼HDCP2.3
HDMI Input	Suscipe ad 4K 60 HZ *
Camera	MIPI CSI 2Lane*1
Ethernet	1000M*2
WIFI	WiFi6 wireless network accessum IEEE802.11a/b/g/n/ac/ax MIMO
RTC	Support RTC
USB	USB3.1 HOST A * 1
	USB3.1 OTG Type-C *1
	USB2.0 HOST A *2
DIABOLUS	SATA3.0 7Pin*1
PCIE	PCIE3.0 M.2 M-Key
Audio	Support mic and audio interface 1 2.0MM 4PIN CON 1
Industria interface	RS232 interface *1
	RS485 interface *1
	I2C interface *1
	GPIO *6
Potestas	12V 3A potentia DC obturaculum 5.5 2.0
