Nxp mimxrt1010 core tabulas

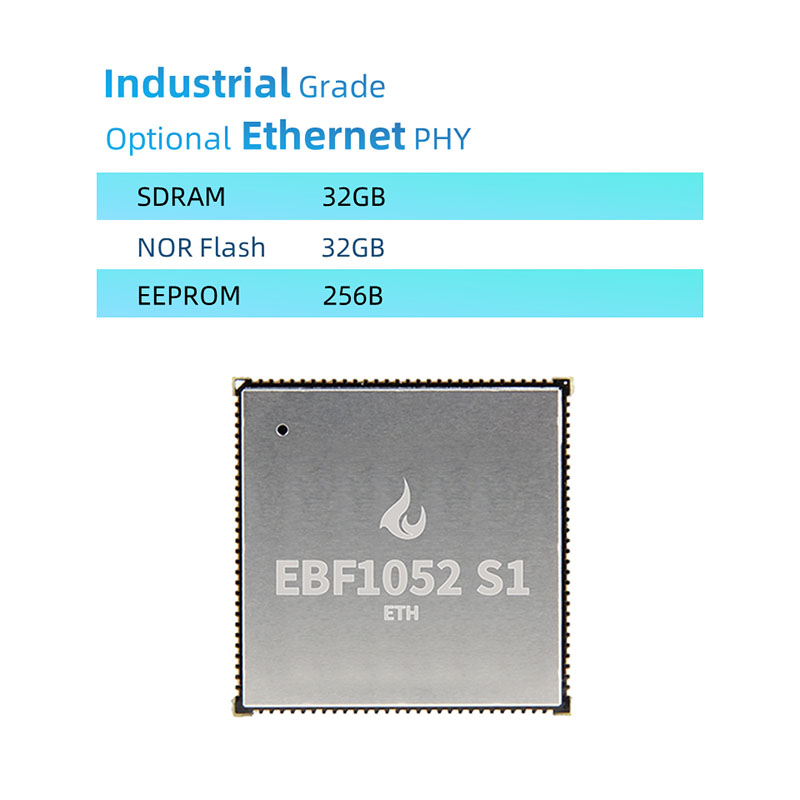

 hoc NXP mimxrt101052 Core Board som est disposito secundum NXP mimxrt1052cvl5b processus

 tota tabula components fiunt ex industriae gradu materiae

 in NXP mimxrt101052 Core Board SOM Hardware Resources includit 32MB SDRAM, 32MB nec Flash, 256b EEPROM et X / 100M Aer 32MM BMPRINGSIO 1.0mm, nisi semc bus non ducitur, nisi semc, nisi in after, et in Reliquum DUXERCINGS, nisi in DUXERIUS X DE CXVI, PINIS EXERCENS 1.0mm Ex.

NXP mimxrt1052 Core Board som Parametri

Core Board Signum interface parametri

Pelagus chip: Mimxrt1052cvl5b, cortex-M7 core, principalis frequency 528mhz

SDRAM: 32MB, BGA sarcina, Brand Iss1, Industrial Grade

Flash: 32MB, Wson8 Package, Brand Iss, Industrial Grade

EEPROM: at24c02 256b

Ethernet Phy: LAN8720A libitum

PCB Size: XXXII * 32mm

Vox Supple: 5V

Clype Cover: Libitum scutum Cover

GPIO: CXVI, 1.0mm paxillus spacing, nisi semc bus reliquum I0 sunt omnes duci

Opus Temperature: -40 ~ LXXXV ° C, Industrial Grade

Core Board Signum interface

Ethernet: I Channel, libitum, tantum praesto cum core tabula habet Aer PHY

LCD: I Channel, Tantum RGB565 cum Using Ethernet, RGB565 / DCCCLXXXVIII potest adhiberi cum non usura Aer

USB: II channels, cum summus celeritate Py

SDIO: II channels

I iv, IV

Spi: IV

UART: VIII

Sai: III

CSI: I

ADC: II (XVI channels se), 12bit

PWM: IV

JTag: I Channel

SPDIF, II channels

Can: II

Nota: quod supra data potest reddi, placere ad core tabula Pin Description ut referat consilium

Et protegens operculum logo potest customized cum minimum ordine D
