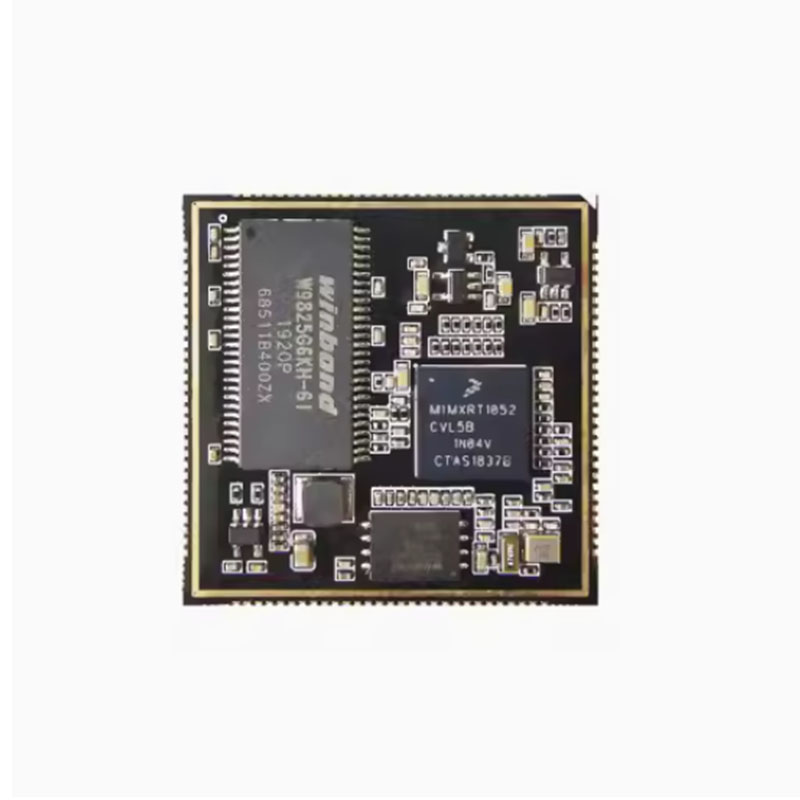

Nxp i.mx rt1052 core tabula

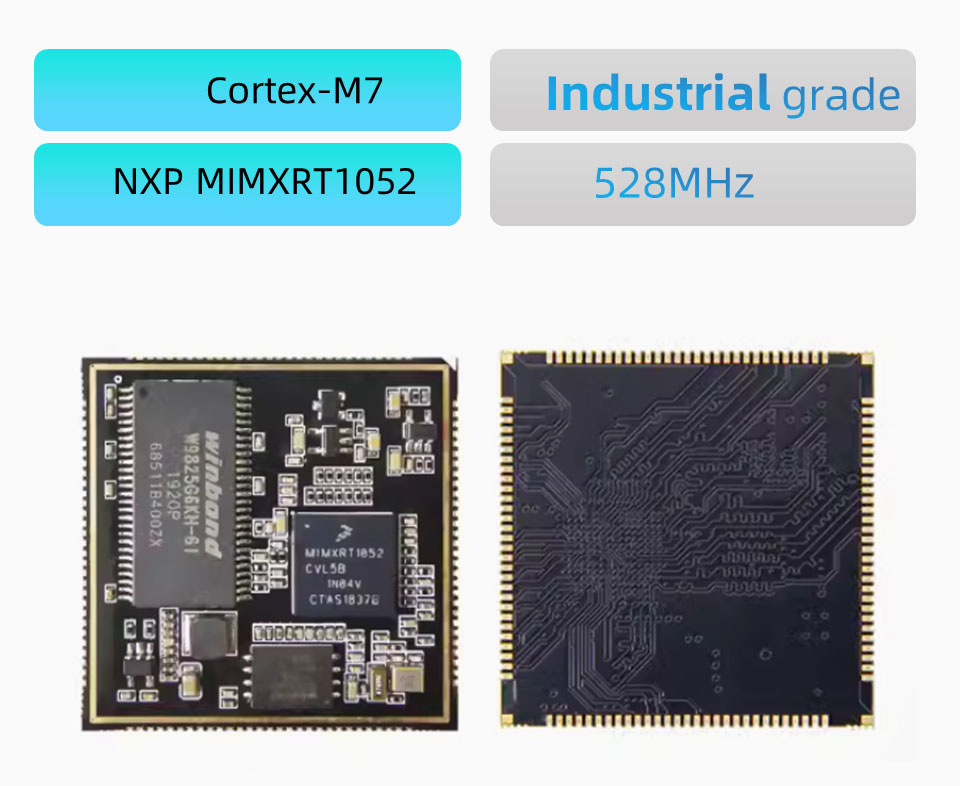

● Hoc RT1052 S2 Core Board est disposito fundatur in NXP mimxrt1052cvl5b processus.

● et components de toto tabulas fiunt ex industriae-gradus materiae.

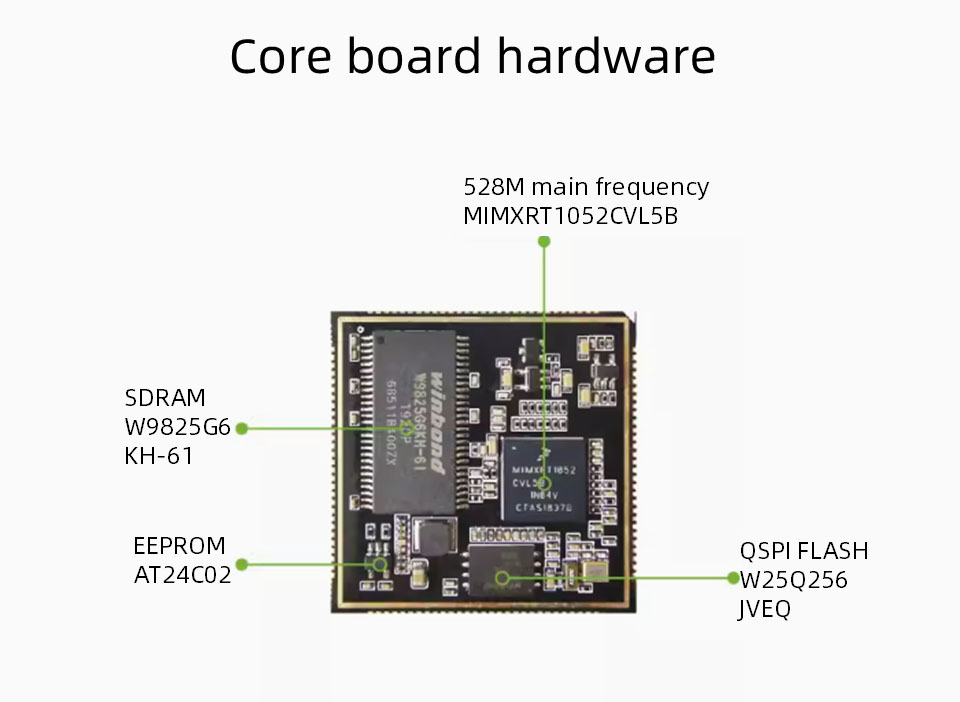

● Hardware opibus in core tabula include

● 32MB SDRAM, 32MB nec mico, 256b EEPROM.

● ad PCB adoptat a VI-layer nigrum immersionem aurum consilio, cum altiore magnitudine XXXVIII * 38mm, summa CXVI paxillos et pin 1.0mm. Nisi semc bus, reliqua X paxillos chip omnes duci.

Core Board Signum interface parametri

Pelagus chip: Mimxrt1052cvl5b, cortex-M7 core, principalis frequency 528mhz

SDRAM: 2MB, TSSOp Package, Brand Winbond, Industrial Grade

Flash: 32MB, Wson8 Package, notam Winbond, Industrial Grade

EEPROM: at24c02 256b

Ethernet PHY: Nihil

PCB Size: XXXVIII 38mm

Vox copia: 3.3v

Clypeus Cover: No Cover

GPio: CXVI paxillos, 1.0mm ACUS spacing, nisi semc bus, omnes I0 sunt duci

Operating temperatus: -40 ~ LXXXV ° C, Industrial Grade

Core Board Signum interface

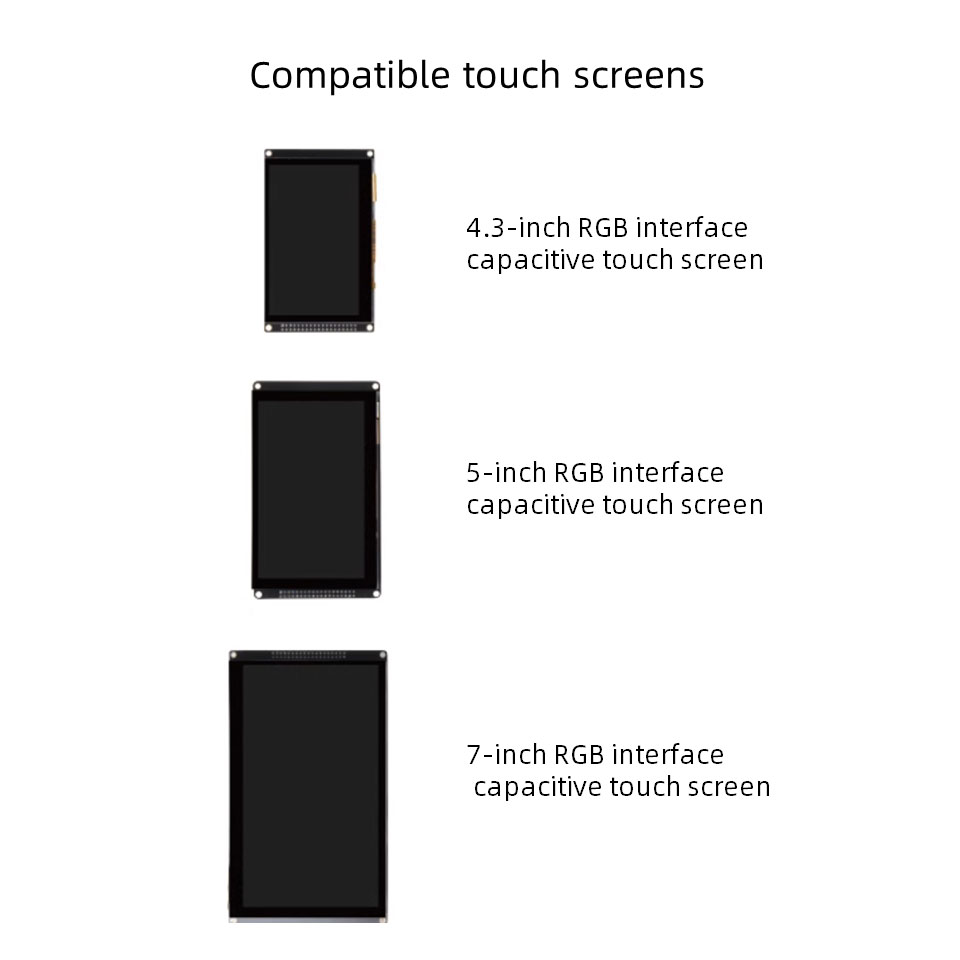

● LCD: I Channel

● USB, II channels, cum summus celeritate phia

● SDio: II channels

● I iv, IV

● Spi: IV

● uart: VIII

● Sai: III

● ADC: II (XVI channels se), 12bit

● PWM: IV

● JTag: I Channel

● SPDIF, II channels

● can: II

● Nota: quod supra data potest reddi, placere ad core tabula Pin Description ut referat consilium

Note: De tabula potest customized cum minimum ordine D
