Rockchip RK3566 BTB Board

I. Rockchip RK3566 BTB Core Board potest esse in summus perficientur unum-tabula computatrum et embedded motherboard pro ostentationem, potestate, network transmissione, lima repono, ora computing et aliis missionibus.

II. Using Rockchip RK3566 sicut pelagus chip, quod adoptat 22nm processus technology, cum a pelagus frequency usque ad 1.8ghz, integrated cum quad-core LXIV-bit cortex, sustinet Dual-Frequency et 1080p, in independens 4k, potest esse in luce Artificialis intelligentia applications.

III. Provide a varietate memoria et repono junctiones eligere ex, onboard hardware configuratione sit libratum, et application range latum.

IV. Et aedificavit in independens npu computing potestas potest pervenire 1Tops, quod potest esse ad radicem artificialis intelligentia ai applications.

V. High Integrratione, cum dives Expansion interfaces, cum Gigabit Ethernet Portus, HDMI, EDP, Minipcle, USB3.0, USB2.0, MIPI screen Interface et MIPI CAMERA Interface, audio et in processus et alias adscribere possunt ad usum missionibus ad usum.

VI. Publice sustinet amet Andriod XI, debain, Ubuntu operating ratio imagines, et potest applicari ad varietate diversis application environments.

VII. Omnino aperta fonte, providing publica tutorials, completum SDK coegi progressionem kits, consilio schematicis et aliis opibus, vos can facile incipiat sine caeci maculis.

Product Features

I. Free SDK

II. Tabula ad Board structuram. RK3566 RK3568 Duo Core tabulas compatible

III. Fulcit plures screen interfaces, sustinet usque ad 4k60 frame output. Sustinet HDMI, MIPI DSI, EDP, LVDS

IV. Built-in independens npu, computing potestate potest pervenire 1Tops

V. Tullius configurationes: I / II / IV / 8GB lpddr4, VIII / XXXII / LXIV / 128gb emmc

VI. 4k decoding; Gigabit Ethernet portum; Usb3.0

VII. Provide Technical Support

Productum parametri

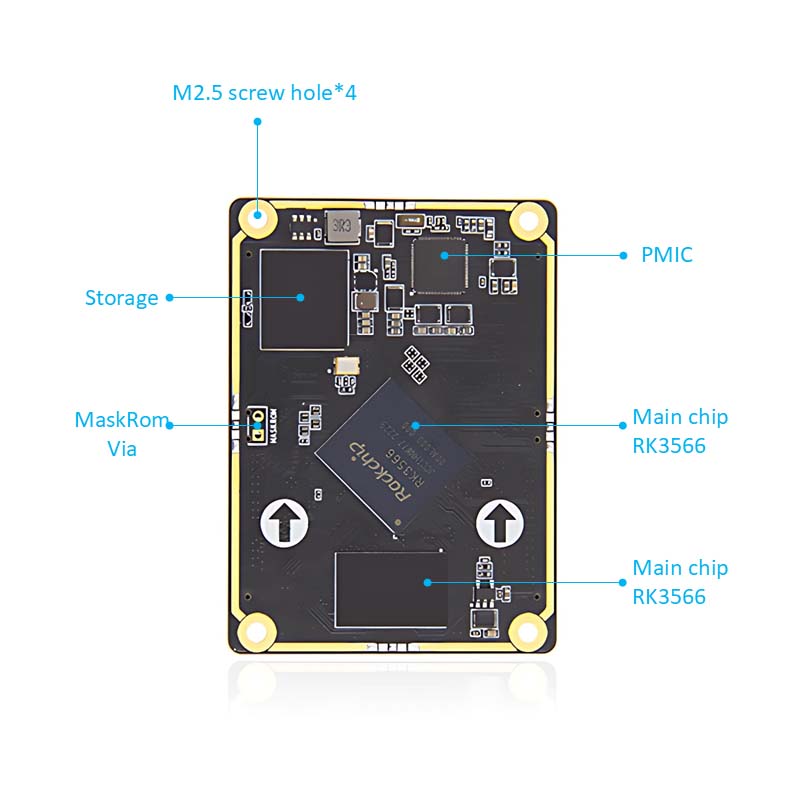

Core-Board parametri

COPULATOR: 260pins DDR4 COPULATOR, Model: ASOA826, H2SB, 7H

Pelagus Chip: RK3566 (Quad-Core cortex-A55, 1.8GHz, Mali, G52)

Io: CCLX Aurum digitos, 0.5mm spacing, ducere ex omnibus I0

Memoria: I / II / IV / 8GB, LPDDR4 / 4x, 1056MHz

PRAECLUSIO: VIII / XXXII / LXIV / 128GB, Emmc

Baseboard parametri

COPULATOR: 260pins DDR4 COPULATOR, Model: ASOA826, H2SB, 7H

Power interface: 12V @ 1a (1a et supra) DC initus, DC interface

Ethernet: X / C / Aer 1000m Adaptive Portus

HDMI: HDMI2.0 screen interface * I, maximum resolutio (IV) XCVI * MMCLX @ 60Hz

LVDS: LVDs screen interface * I, una channel 8bit

MIPI, DSI, mipi screen interface * I; Modum Modum Maximum Resolutio MCMXX * MLXXX @ 60Hz

MIPI, CSI: MIPI camera interface * II, pluggable IMX415 / Ov8858 Camera

Edp: Edp1.3 screen interface * I, Edp tactus interface * I

USB2.0, Type-a interface * III (exercitum); Typus-c interface * I (OTG), nam firmware ardenti interface

USB3.0, Type-A Interface * I (HOST)

WiFi + Bluetooth, Oceard WiFi Bluetooth moduli, Model: RTL8821CU

Ple Interface: Mini-Ple Interface, potest esse cum plenus-altitudo vel dimidium-altitudo WiFi Network Card, 4G moduli vel mini-Ples Interface Module

Sim card possessor: Sim card munus necessitates ut solebat cum 4g moduli

1 ^: 1 **

Serial Portus: Debug Serial Portus * I (Uart2) Default Parameter 1500000-8-N-I; Lvttl Serial Portus * II (Uart7 & Uart9); Rs232 * II (Uart3 & Uart4); Rs485 * II (Uart1 & Uart6)

TF Card Holder: Support Micro SD (TF) card ut satus ratio, usque 512GB

Audio: Google output, 3.5mm Audio Jack * I (viride); Audio input, 3.5mm Audio Jack * I (Red) Microphone Interface * I Microphone

* * I speaker Interface, potest coniungere 1W potestate speaker

Buttons: Power Puga pyga; Maskrom puga; Recuperatio Button

Infrarubrum Receiver, sustinet ultrared remotis imperium munus

RTC: RTC Power Sockket * I

Fan interface: sustinet installation of 5v Fan Refrigerant
