Rockchip RK3528A Linux Motherboard Onboard SBC Board

Rockchip Rk3528a Linux Motherboard Onboard SBC Board est maxime ad makers et embedded ingressum developers. Non potest esse ut mobile unum tabulam computatrum et embedded motherboard, cum officium, educationem, programming progressionem, embedded progressionem et aliis munera.

Use Rockchip RK3528a Linux Motherboard Onboard SBC Board as the main chip, with 2.4G WiFi module, USB HOST, HDMI2.0, Gigabit Ethernet, TF card holder and other peripherals, lead out 30Pin unused pins, support GPIO, SPI, UART, PWM functions.

In tabula providet a varietate memoria configurationes eligere ex, tantum LVI * 65mm in magnitudine, parva et exquisita, humilis virtute consummatio et altus perficientur, potest facile currere Linux vel Android ratio.

Officially sustinet amet Android XIII, debain, Ubuntu operating ratio imagines, quod potest applicari ad IV diversis application environments.

Est omnino aperta fonte, praebet publica tutorials et providet completum SDK coegi development kits, consilio schematics et aliis facultates ad faciliorem usu et secundarium progressionem.

Rockchip RK3528A Linux Motherboard Onboard SBC Board Massetri

I. CPU: Main Chip: RK3528A, IV-Core LXIV-Bit Cortex-A53

II. GPU: Arm Mali-CDL

III. Memoria: Onboard LPDDR4, 1/2/4 GB

IV. PRAECLUSIO: Emmc, 0 / VIII / 32GB, sustinet emmc tabernus ratio

V. Power interface: 5v @ 3A DC initus, Type-C Interface

VI. Ethernet: X / C / 1000m Adaptive Aer Portus

VII. USB2.0, Type-A Interface * III (HOST)

VIII. USB3.0: Type-A Interface * I (HOST)

IX. HDMI: HDMI2.0 screen interface * I, summa resolutio sustinet 4096x2160 @ 60fps

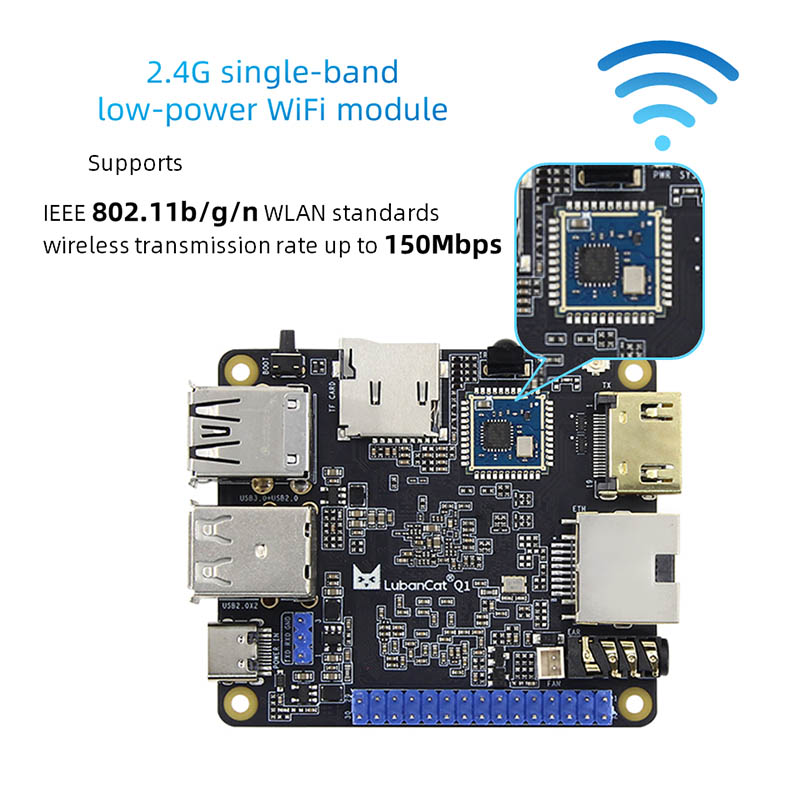

X. WiFi: Oceard Sustinentia 2.4G WiFi, Model: BL-RTL8189Fs

XI. TF Card possessor: SD3.0 interface, usque 512GB, sustinet TF card tabernus ratio

XII. 1o interface: 30pin 2.54mm pin interface, sustinet GPio, spi, uart, PWM functiones

XIII. Debug Serial Portus: Default Parameter 1500000-8-N-I

XIV. Audio: headphone interface * I, potest tantum output audio

15. Button: Maskroom button*1

XVI. Infrared Receptiver: sustinet ultrared remotis imperium munus

XVII. Fan Interface: Sustinentias installation of 5v Fan Refrigerant

XVIII. DUXERIT: Power indicator * I; Ratio indicator * I

XIX. Size: LVI * 65mm
