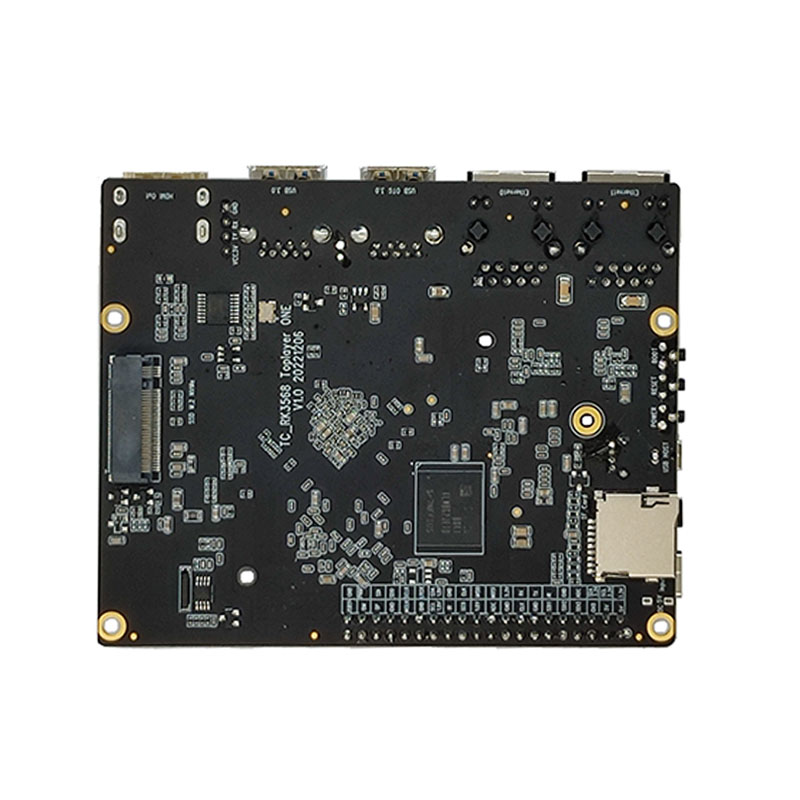

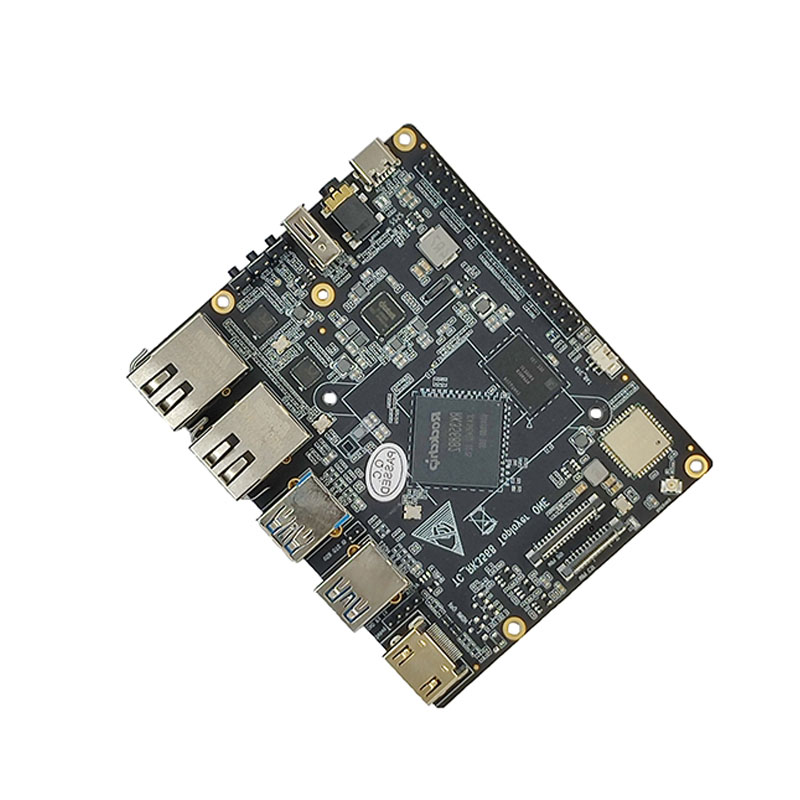

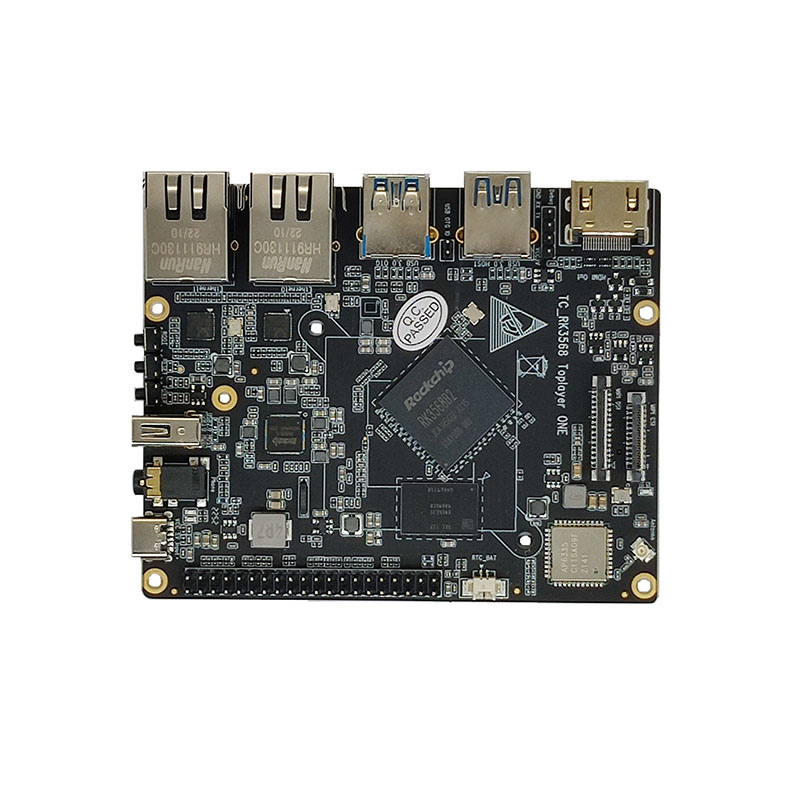

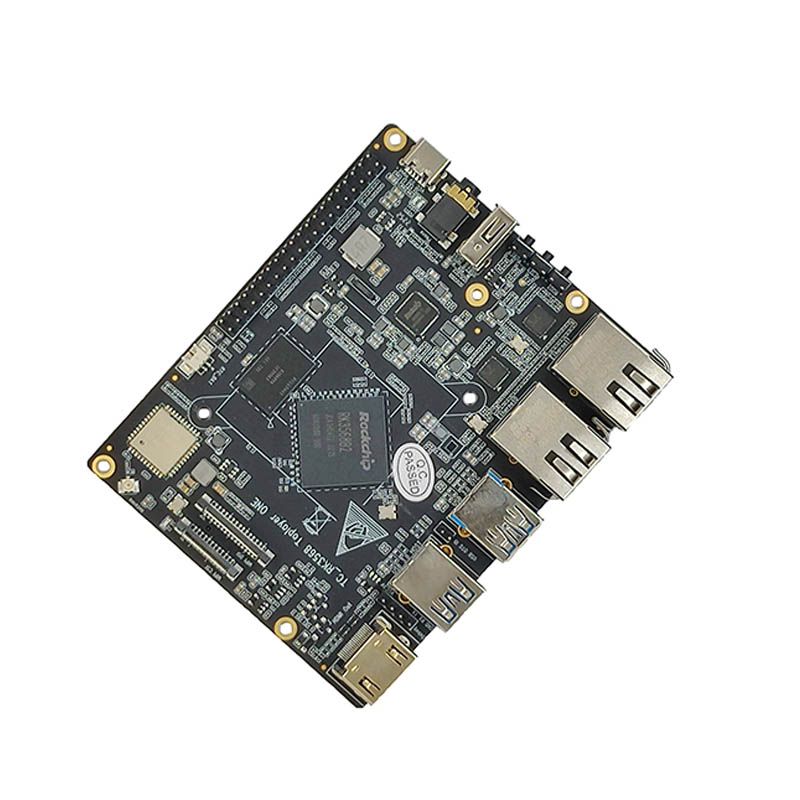

RK3568 Card Computer

Thinkcore est primarius Sinarum RK3568 fabricatores computatorii, praebitores et exportatores. RK3568 Toplayer UNUM TC68, instructum RK3568 ut nucleum principale quod cum quad-core 64 frenum Cortex-A55 processus et Mali G52 2EE processor graphicus qui efficientem ac stabilem praestationem ad finem notificationis instrumenti retrogrado praebet, computatorium card est cum celeritas processus processus valde emendatus et melioramenta perficiendi consequitur. RK3568 sui iuris NPU cum 1TOPS vim computandi habet, quae ad leves applicationes intelligentiae artificiales adhiberi potest.

Mitte Inquisitionem

depictio producti

Ingens delectus RK3568 e card computatro Sinarum in Thinkcore invenire. RK3568 subsidia dual-screen diversae ostentationis sustinent maximum simultaneum ex 4K60 frame + 2K60 frame imaginis, subsidium HDR, subsidium 4K60 frame decoding video output et 1080P descriptam. Ita RK3568 est bona electio ad NVR ostentationem localem et in colloquio loci decoding video ac aliis productis cum experientia visuali excellenti.

RK3568 est primum technologiam 22nm processuum introducere, quae efficaciter minuit vim consumptionis chips et magnitudines chippis, et meliorat vim consumptionis et perficiendi per 20% comparatum cum 28nm. Itaque cum solum 102mm*82mm in magnitudine ï¼Toplayer UNA TC68 tabula varietatem memoriae et optionum configurationum repositarum praebet.

Humilis potentia consummatio et summa effectus faciunt RK3568 et Toplayer UNA TC68 currunt Linux, Android et alia systemata facile.

Providemus Android, Debian, Ubuntu, Linux Buildroot imagines systematis operantis, quae multis variis applicationibus ambitibus applicari possunt. Ac etiam praebemus integrum SDK fontem codicem cuiusque systematis operantis, ferramentis schismaticis et bitmapis, manualibus, documentis, instrumentis aliisque facultatibus ad applicationis emptoris et ulterioris progressionis faciliorem.

Features Toplayer UNA TC68 suggestu evolutionis:

RK3568 opera ut principale imperium ad efficiendum motherboard potens, efficax, stabilis et certa

Locuples interfaces ut applicationes amplis efficiat;

Parva magnitudo (102mm*82mm) facile inseri potest.

Variarum tabularum configurationsï¼1/2/4GBï¼LPDDR4Xï¼8/32/64GBï¼EMMCï¼

Support Androidï¼Linux Buildrootï¼Ubuntuï¼Debian etc.ï¼Open source code; subsidium technicum perfectum, cyclum evolutionis accelerare.

potentia interface	5V@3A DC input, Type-C interface
Magister imperium SOC	RockChip RK3568ï¼Quad-core 64-bit Cortex-A55 processus, 22nm processus, principalis frequentia 2.0GHzï¼
GPU	ARM Mali-G52 GEE processor graphics Sustinet OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 2D accelerationis hardware embedded summus perficientur
NPU	Integra summus effectus AI accelerator RKNN NPU, 1.0Tops@INT8 Support one-click commutatione Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
VPU	Support 4K 60fps H.265/H.264/VP9 video decoding Supports 1080P 100fps H.265/H.264 video codec
aries	1GB/2GB/4GB/8GB LPDDR4x
Repono	8GB/16GB/32GB/64GB/128GB eMMC
Ethernet	2*1000Mbps Gigabit Ethernet dual (RJ45)
Wireless	Suscipe WiFi cohortem dualem, sustenta BT5.0
Propono Interfaces	1 * HDMI2.0, subsidium 4K@60 Hz 1 * MIPI DSIï¼Support 1920*1080@60fps outputï¼Multiplexing cum LVDS ostentus interfaceï¼
Audio Jack	1 * 3.5mm earphone audio output

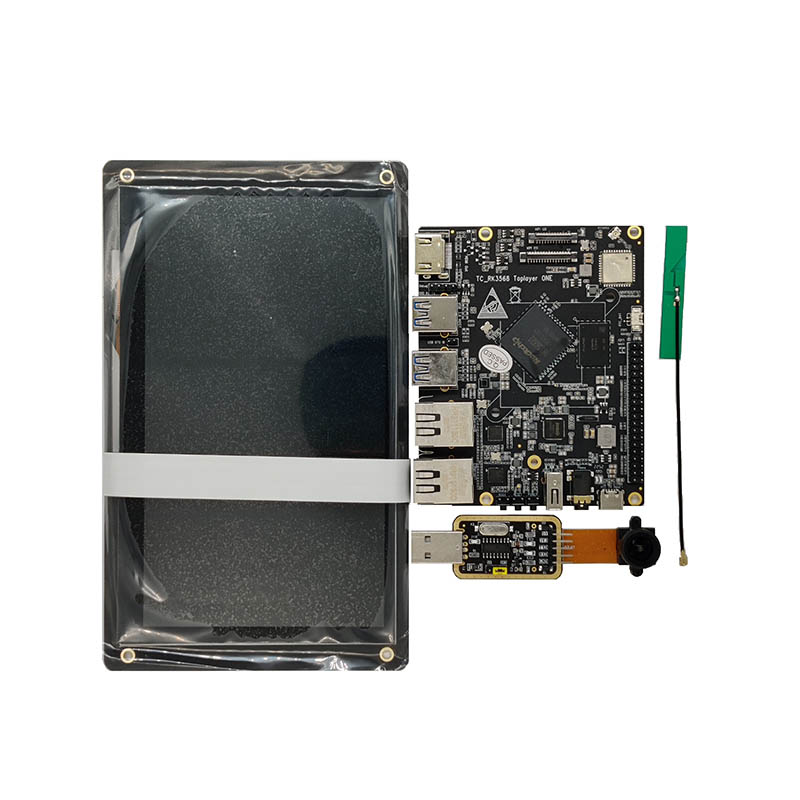

Camera	MIPI-CSIï¼Per defaltam, coniungi potest cum Thinkcore camera monocularis GC2053
USB interface	1USB2.0 hostï¼1USB3.0 HOST,1*USB3.0 OTGï¼Host/Deviceï¼
Vide portum debug	4pin 2.54 interface, defaltam baud rate 115200-8-N-1
TFå¡	Support128GB
Button	Virtus button, Recuperatio button, Reset puga
RTC function	RTC altilium interface, 2pin 1.25 interface
40Pin interface	2*20 2.54 picis, subsidia GPIO, I2C, SPI, I2S, ADC, UART, USB, 1.8V, 5V et alia.
Calor dissipationis	Calorem descendunt fixing foraminis
Ratio subsidium	Support Android 11.0ï¼Linux Buildrootï¼Ubuntuï¼Debian
Mainboard Location	102* 82 mm
Potestas	5V@3A
Operating Temperature	-20âï½65â
Repono temperatus	-30âï½70â
Repono Umor	10%ï½80%
