RK3568 tabula ad tabula motherboard

Thisrk3568 tabulam ad tabula motherboard (BTB interface) potest esse in summus perficientur uno-tabula computatrum et embedded motherboard pro ostentationem, potestate, network transmissionem, lima repono, in ore computatiosi.

Using RockchipRK3568 (commercial grade)/RK3568J (industrial grade) as the main chip, it adopts 22nm process technology, with a maximum frequency of 2.0GHz, integrated quad-core 64-bit Cortex-A55 processor and MaliG522EE graphics processor, supports 4K decoding and 1080P encoding, supports dual-frequency display, Built-in independens npu, potest esse in lightweight artificialis intelligentia applications.

Providere varietate memoria repono combinationes eligere a libratum onboard hardware configuratione, amplis applications

Strued-in independens npu computing potestate potest pervenire 1Tops (3568J est 512Macnpu), potest esse ad radicem artificialis intelligentia applications.

It has high integration and rich expansion interfaces, and is equipped with dual Gigabit Ethernet ports, HDMI, eDP, 5MiniPCle, SATA, M.2, USB3.0, USB2.0, MIPI screen interface, MIPI camera interface, audio interface and other peripherals, which can give full play to the performance of the processor and further expand the use scenarios of the board.

Officially sustinet amet andriod XI, debain, Ubuntu operating ratio imagines, et potest applicari ad varietate diversis application environments.

Omnino aperta fonte, providing publica tutorials, completum SDK Development Packages, Design schematics et aliis opibus, vos can facile adepto coepi sine mortuis finem.

Features

I. Promptus ad usum, supports multiplex operating systems, utrum sit progressio vel entertainment, quod potest esse facile satisfacere!

II. Dual Gigabit Ethernet Interfaces, Support Dynamic Voltage DISSIGNATIO

III. In independens NPU, Computing Power potest pervenire 512MAC / 1taps

Sustinet unum-click switching de amet architectura exempla, potest esse in lightweight artificialis intelligentia applications

IV. Potens imago Analysis Capbilities, Securus Decoding 4k sustinet 4k @ LX Frames H.264 \ H.265 \ VP9 Format Decoding et 1080p60 Artus H.264 \ H.265 Forma Encoding

V. Dual-screen ostentationem, summus definitione et portable

Support Dual-screen ostentationem, subsidium ad 4k60 tabulae + 1080p60 tabulae imaginem output simul

Cum dives expansion interfaces occursum variis exterioribus necessitates

Parametri

Hoc motherboard ex RK3568 / RK3568J Core Board + Baseboard cum forma tabula ad tabula. Ita quod basis tabula est compatible cum nostris rk3568 / RK3568J Core Board and Rk3566 / RK3566J Core Board.

RK3568 BTB Core Board Hardware configuratione

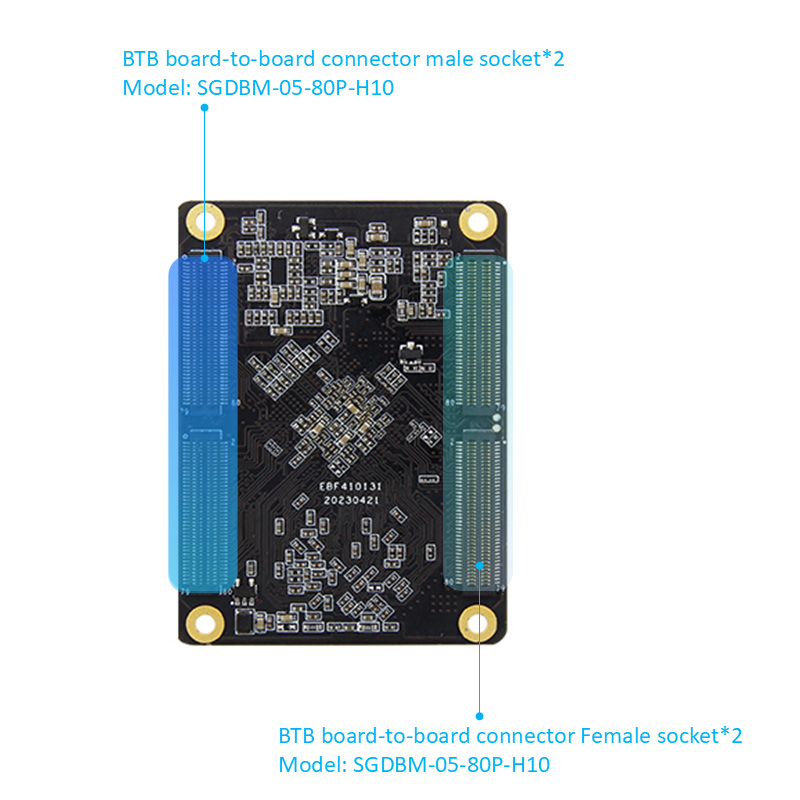

COPULATOR: Male: SGDBM, 05-80p-H10 Male: SGDBF-05-80p, H30

Pelagus Chip: RK3568 / RK3568J (Quad-Core cortex-A55, 2GHz, Mali, G52)

Io: BTB ducit ad CCCXX paxillos, 0.5mm spacing, ducit ad omnes I0

Memoria: I / II / IV / 8GB, LPDDR4 / 4x, 1560MHz

PRAECLUSIO: VIII / XXXII / LXIV / 128GB, Emmc

RK3568 BTB Baseboard Hardware configuratione

COPULATOR: Male: SGDBM, 05-80p-H10 Male: SGDBF-05-80p, H30

Power interface: 12V @ 1a (1a et supra) DC initus, DC interface

Ethernet: X / C / Aer 1000m Adaptive Aer Portus * II

HDMI: HDMI2.0 screen interface, sustinet Dual-screen ostentationem, maximum resolutio (IV) XCVI * MMCLX @ 60hz

MIPI, DSI, mipi screen interface * II, potest esse plugged in Wildfire mipi screen, Support Dual-screen Display: Single MIPI Mode Maximum Resolutio MCMXX * MLXXX @ 60Hz

MIPI, CSI: MIPI camera interface * II, potest SUPERGESTUS in IMX415 / Ov8858 Camera

Edp: Edp1.3 screen interface * I, EDP tactus interface * I; Support Dual-screen ostentationem

USB2.0, Type-a interface * III (exercitum); Typus-c interface * I (OTG), nam firmware ardenti interface

USB3.0, Type-A Interface * I (HOST)

M.2 interface: M.Key genus solidum state coegi, Pcle3.0 * II vicos; Potest SUPERGESTUS in MMCCLXXX Specification NVME Solidum State Coegi

Ple Interface: Mini-Ple Interface, potest esse cum plenus-altitudo vel dimidium-altitudo WiFi Network Card, 4G moduli vel mini-Ples Interface Module

Sim card possessor: Sim card munus necessitates ut solebat cum 4g moduli

DIABOLUS interface: vexillum SATA interface * I; DIABOLUS potentia copia interface * I, sustinet 12v output

Can: can * II

ADC: ADC acquisition interface * I

Serial Portus: Debug Serial Portus * I (Uart2) Default Parameter 1500000-8-N-I; Lvttl Serial Portus * II (Uart7 & Uart9); Rs232 * II (Uart7 & Uart9) Rs485 * II (Uart3 & Uart4)

TF Card possessor: Sustinet Micro SD (TF) Card tabernus ratio, usque 512GB

Audio: Google output, 3.5mm Audio Holder * I (Green); Audio input, 3.5mm Audio Holder * I (rubrum); Microphone Micu interface * I SPK speaker Interface * I, potest coniungere 1W potestate speaker

Puga pyga: Power puga; Reset puga; Recuperatio Button

Infrarubrum Receiver, sustinet ultrared remotis imperium munus

RTC: RTC Power Sockket * I

Fan interface: subsidiis installation of 5v fan enim refrigerationem
