Rk3566 SBC una tabula computatrum compatible cum RUBUS IDAEUS PI

ThinkCore est a ducit Sina RK3566 SBC una tabula computatrum compatible cum RUBUS IDAEUS PI manufacturers. Et RK3566 SBC Board est summus perficientur et industria-efficientem tabula, quae est specimen ad amplis industriae et commercial applications. Est disposito offerre eximia processui virtutis et reliability, faciens illud optimum arbitrium pro users in search of a certa, summus qualitas computing solutio.

 Rockchip RK3566 adhibetur ut pelagus chip, 22nm processus technology, 1.8ghz principalis frequency, integrated quad-core LXIV-bit cortex-A55 processus, Mali G52 2EE Graphics.

 Trimmer et independens NPU;

 cum 1Tops computing potestas, quod potest esse in lightweight AI applications;

 Support I channel 4k60-frame decoded video output et 1080p encoding;

 A numerus of on-tabula peripherals, integrated Gigabit Ethernet, USB3.0, USB2.0, HDMI, Mini PCIE, MIPI screen interface, mipi camera interface et aliis peripheros, reservata 40sters Pins; In tabula praebet a varietate memoriae et repono configuratione optiones, tantum LXXXV * LVI mm magnitudine, humilis potentia consummatio, princeps perficientur, potest facile currere Linux vel Android ratio;

 Android, debain, et Ubuntu operating ratio imagines sunt available pro varietate application environments.

 providebit completum SDK coegi Development Ornamentum, consilium schematic et aliis opibus, convenient ad users ad uti et secundarium progressionem.

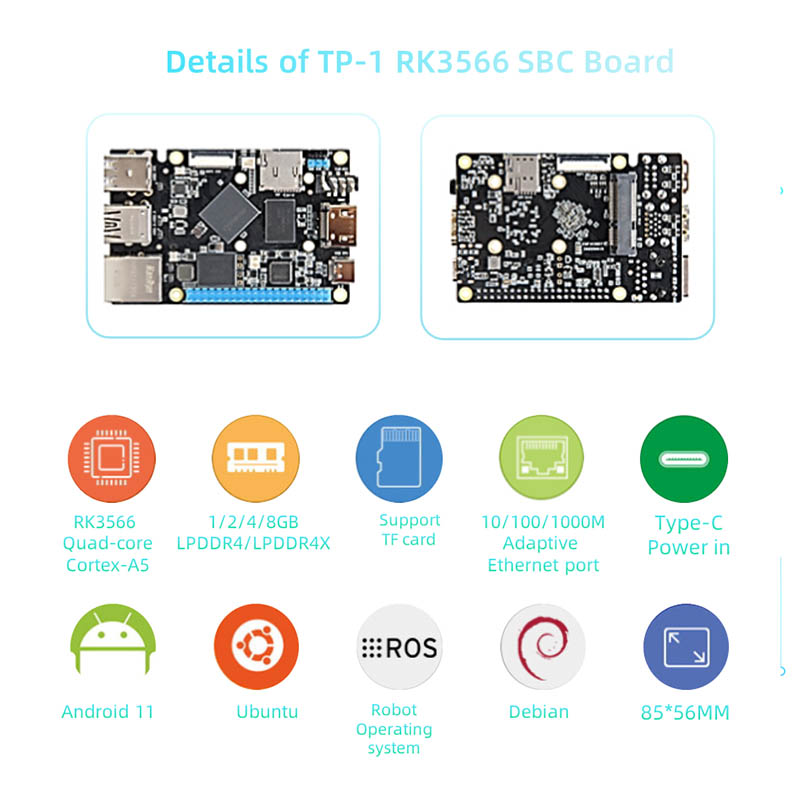

Productum parametri

OMNIBUS: TP-I ((cum I Gigabit Network Portus)

Power interface: 5V @ 3A DC initus, typus-c interface

Pelagus Chip: RK3566 (Quad-Core cortex-A55, 1.8GHz, Mali, G52)

Memories: I / II / IV / 8GB, LPDDR4 / 4x, 1056MHz

Wireless Network: 802.11AC, Dual-Band Wireless Network Card, usque ad 433mbps Sup; Bluetooth sustinet bt4.2 protocol

HDMI: Mini-HDMI 2.0

Display Portus: Mipi- DSI

Mipi screen: interface, vos can plug in mipi screen

MIPI, CSI camera interface: vos can plug in Ov5648 Camera

USB: Type-C Interface * I (OTG), qui communicatur cum potentia interface;

40pin interface: type-c interface * I (exercitum), quod non potest esse in potentia copia

Debug Serial Portus: compatible

Cum RUBUS IDAEUS PI 40pin interface, Support PWM, GPIO, I²C, Spi, UART

Munera
