Rockchip's RK3562 AI Processor Wins China Chip Award, Ostendens RK3562 Hardcore Virtus

Die 14 Novembris 2025, "Sina Chip" Integrated Circuit Industry Promotio Conferentiae ac die 20 "Sinae Chip" Praestantia Product Electionis Awards Caerimonia in Zhuhai feliciter habita sunt. Ultra humili potentia leveAI processus RK3562, ex Rockchip Electronics Co., "Praemium Outstanding Market Performance Product" consideratum est. Acceptum huius auctoritatis praemii significat forum altam agnitionem RK3562 producti aemulationis. Egregia exsecutio RK3562 demonstrat eius praecise producti positionis et fori aemulationis validam magnam recognitionem per totam industriam catenam obtinuisse.

"In Sinis Chip" selectio actio a Sinis Centre pro Information Industry (CCID) ordinatur et consistit ut unum e praemiis gravissimis et auctoritativae industriae in ambitu campi domestici integrati. In "Eutingentia Market euismod Product" adiumenta ad cognoscendum domesticum pondus products, qui significant beneficia oeconomica et industriam in foro consecuti sunt.

RK3562 mercatus est AI, chip a Rockchip in forum AIoT immissa. Cortex-A53 CPU, Mali-G52 GPU quad-core integrat, et constructum in NPU tradens 1 TOPS vim computandi, optimam proportionem obtinens inter potentiam consummationem, effectum, et sumptus. Clavis eius commoda technica includit:

• Ultra-Low Power Consumption Design: The chip adopts advanced low-power process technology and power architecture design, significantly reduceing both operational and standby power consumption, maintaining performance.

• Lightweight AI Computing Power: Instructed with a dedicated NPU tradens to 1 TOPS of supputing power, facile obviam variis functionibus requisitis per varias AIoT cogitationes.

• Robust Multimedia Processing Facultas: Sustentationes 4K@30fps video decoding et 1080p@60fps descriptam, prospiciendi lusum leves et processui formarum videndi amet.

Cum eius launches, RK3562 in magna applicatione commerciali applicationis per multiplices cardinis partes celeriter consecuta est, virtute praestantium rerum comprehensivarum commodarum, mercatu infigo perficiendo tradens. Applicatio scope includit:

• Smart Business: Smart POS terminals, signage digitalis, ostentationes, accessum temperantia et systemata intercom, etc.

• Consumer Electronics: Consumer tabulae, lucernis dolor studii, dictionarii pens, AI, etc.

• Smart Home: Smert domus moderatoris, bona intelligentes album, roboticum vacuum cleaners, nubes computers, vox loquentium, etc.

• Industriae IoT: HMI (Interface Humano-Machinae) systemata, potestas machinas, notationes caesuri, etc.

Adipiscendae "Evangelii Market Outstanding Product" notas iudicandas RK3562 factum esse unum e nucleo pulsis viribus post evolutionem industriae AIoT Sinarum. RK3562 vires levantes in alta observantia, humilis potentia consummatio, et interfaces divites, Thinkcore Technology Co., Ltd elaboravit RK3562/RK3562J nucleum tabulas et evolutionis tabulas, quae sunt aptae ad commercii ostentationem machinarum sicut omnes in uno ostensione commerciali, histriones vendendi et vivo terminales effusis.

Infra pertinet notitia de theRK3562 ASet progressus tabula.

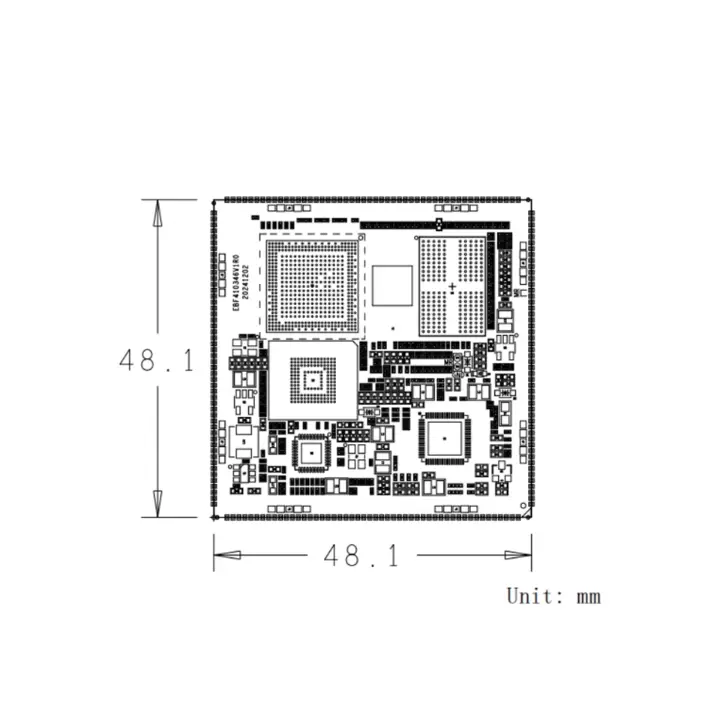

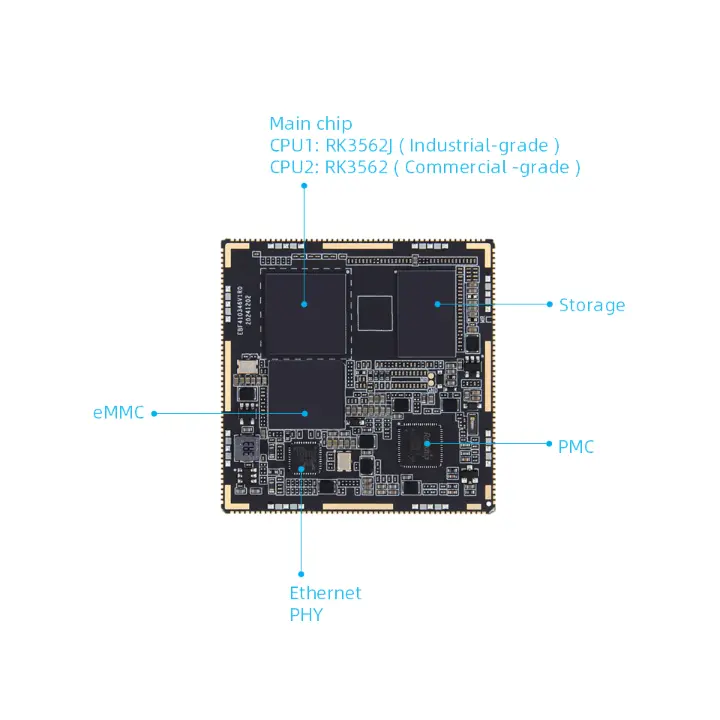

RK3562/ RK3562J SOM

RK3562/ RK3562J SOM Hardware configuration

Praecipuum chip

Exemplar:RK3562/RK3562J

CPU: Cortex-A53, usque ad 2.0GHz .

GPU: Mali-G52

NPU: 1TOPS computandi potestatem (RK3562J sine NPU-gradus industrialis)

Memoria: 1/2/4/8GB, LPDDR4/4X (customizable)

Repono: 8/32/64/128GB, eMMC (customizable)

Interface: stamp foramen interface, 10 plenum ducit

PCB: 8 strata, immersio auri designationis nigrae

Size: 48.1*48.1mm

Signum fibulae

IO: 86 GPIO paxillos, inter horologium differentiale 1, 3 paxillos fibulas et 1 imperium clavum

Retiacula port: 1 Gigabit Ethernet

Vide portum: 10

12C: 6

SPI: 3

POTEST: 2

ADC: 13

PWM: 15

12S: 2

USB3.0 OTG: 1

USB2.0 HOST: 1

Camera: MIPICS12Lane*4

SDMMC: 2

SPK: 1

Audio output: 1

mic: 1

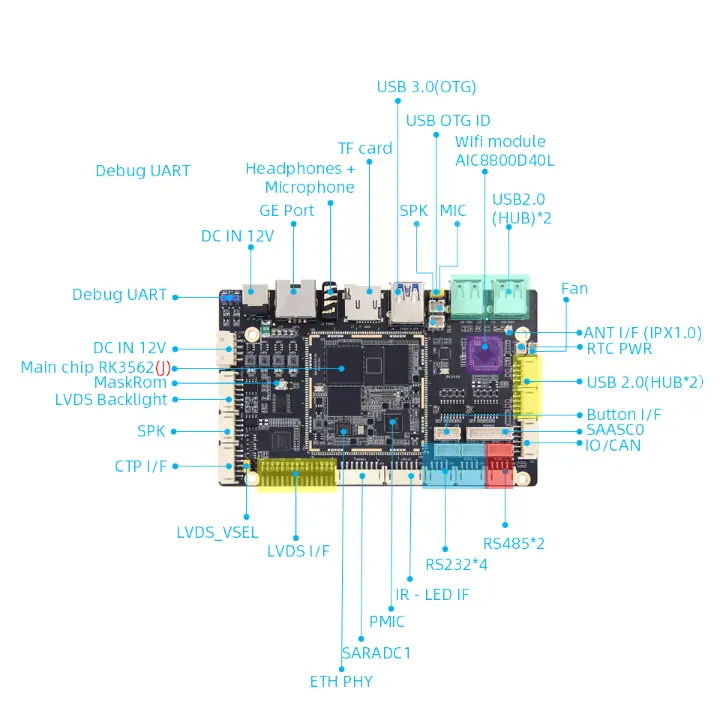

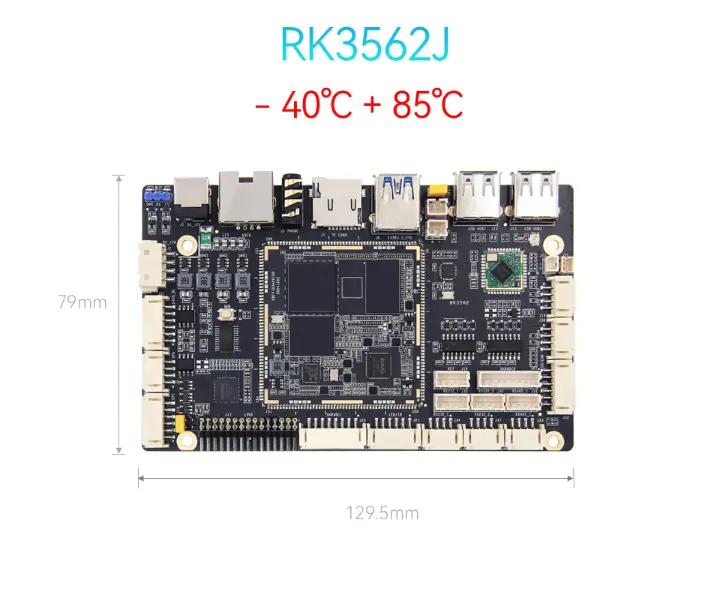

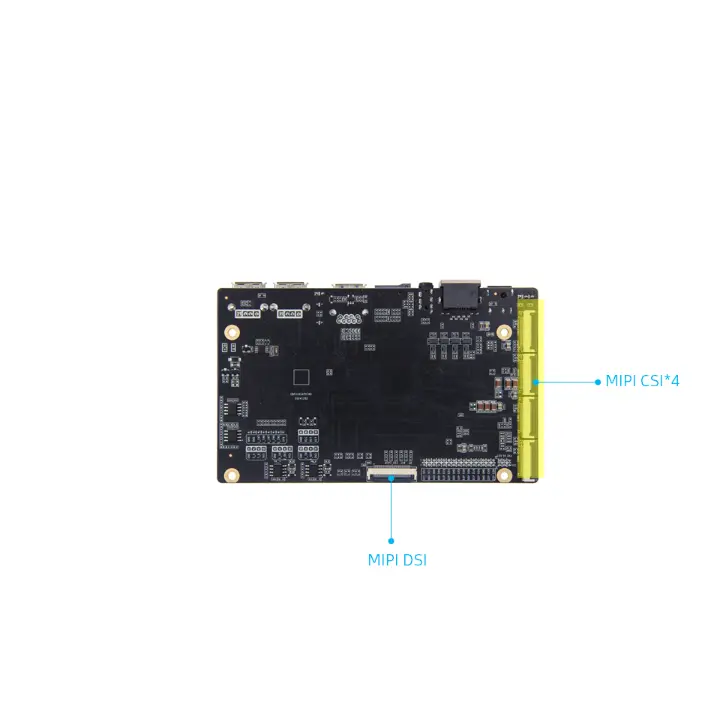

RK3562 Baseboard

RK3562/ RK3562J Development Board Hardware configurationis

Praecipuum chip:

Exemplar:RK3562/RK3562J

CPU: Quad-core Cortex-A53, frequentia principalis usque ad 2.0GHZ

GPU: Mali-G52NPU: 1TOPS computandi potestatem

Memoria: 1/2/4/8GB, LPDDR4/4X (customizable)

Repono: 8/32/64/128GB, eMMC (customizable)

Potentia interface: DC 12V@2A DC input

Ethernet: Gigabit retis portus*1, subsidia 10/100/1000Mbps data transmissionis rate

LVDS: 2*15Pin LVDS screen interface* 1

MIPI-DSI: MIPI velum interfaciei*1, MIPIDSI et LVDS interfacium reddi, et defectus ad LVDS velum coniungere est. Si vis coniungere cum MIPIDSI, debes mutare resistor

MIPI-CSI: MIPI camera interface* 4, potest inplenda in camera IMX415/OV8858 (defectum iuncturae est camera OV8858)

Repono: 8/32/64/128GB, eMMC (customizable)

LCD backlight: LVDS backlight interface *1

Screen power interface: LVDS voltage selection interface *1

USB2.0: USB HUB interface * 4

USB3.0: USB OTG interface * I, default Fabrica est modus, modus eligi potest per pileum thoracem laneum

WiFi: Onboard WiFi6 modulus, exemplar: AIC8800D40L

TF card possessor: Support Micro SD (TF) card ut satus systema, usque ad 512GB

Insuper nostra societas morem evolutionis tabularum batrarum et baseboards ad varia requisita formandam accipit. Contact us Now!
